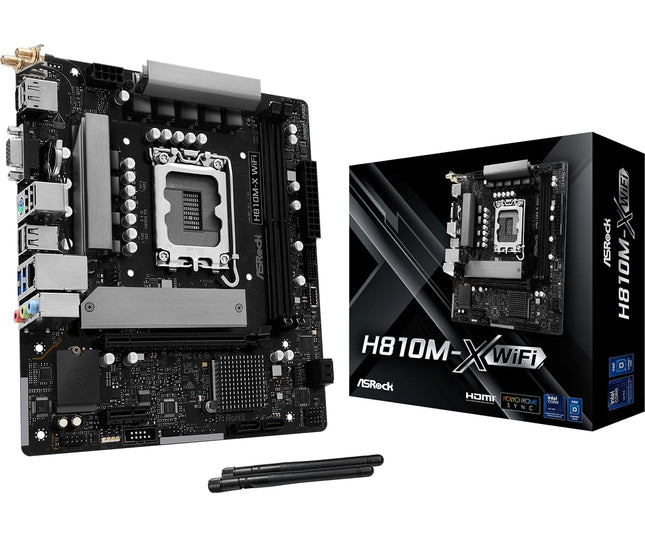

The ASRock H810M-X WiFi is a compact Micro-ATX computer motherboard built around the Intel H810 chipset and LGA1851 socket for Intel Core Ultra processors (Series 2). It combines a practical layout with dual-channel DDR5 support, making it suitable for efficient office, home and general-purpose PC builds where modern connectivity and a smaller board footprint are important.Two DDR5 DIMM slots support up to 128GB of system memory and speeds up to 6400 MT/s. Expansion is handled by one PCIe 4.0 x16 slot plus one PCIe 4.0 x1 slot. Storage options include one Hyper M.2 socket running at PCIe Gen4x4 and four SATA III connectors, giving this micro ATX motherboard a useful mix of fast NVMe storage and conventional SATA expansion.For networking, the board provides Realtek 2.5 Gigabit Ethernet together with dual-band 802.11ac Wi-Fi and Bluetooth 5.0. Display connectivity includes HDMI 2.1, DisplayPort 1.4 and D-Sub for processors with integrated graphics. USB connectivity includes rear and front USB 3.2 Gen1 ports, a front USB Type-C header and USB 2.0. Realtek ALC897 7.1-channel HD audio, RGB and addressable RGB headers, AMI UEFI BIOS and a 24-pin ATX plus 8-pin CPU power design complete this well-equipped PC motherboard. Brand ASRock Model H810M-X WiFi MPN 90-MXBS6-A0UAYZ Socket LGA 1851 Chipset Intel H810 Supported Processors Intel Core Ultra Series 2 Form Factor Micro-ATX Memory Technology DDR5 Memory Slots 2 × DIMM Maximum Memory 128GB Memory Speed Up to 6400 MT/s PCIe x16 Slots 1 × PCIe x16 (PCIe 4.0 x16) Additional PCIe Slots 1 × PCIe 4.0 x1 M.2 Slots 1 × Hyper M.2 (PCIe Gen4x4) SATA Ports 4 × SATA III Wireless Connectivity Wi-Fi 5, Bluetooth 5.0 LAN 2.5 Gigabit Ethernet Video Outputs HDMI, DisplayPort, D-Sub USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio (Realtek ALC897) BIOS 256Mb AMI UEFI Internal Headers RGB, 2 × Addressable RGB, TPM, USB 2.0, USB 3.2 Gen1, front USB-C Power Connectors 24-pin ATX, 8-pin 12V Rear I/O PS/2, D-Sub, HDMI, DisplayPort, 2 × USB 3.2 Gen1, 4 × USB 2.0, RJ-45, audio jacks, antenna ports Operating System Windows 11 64-bit

Read more less

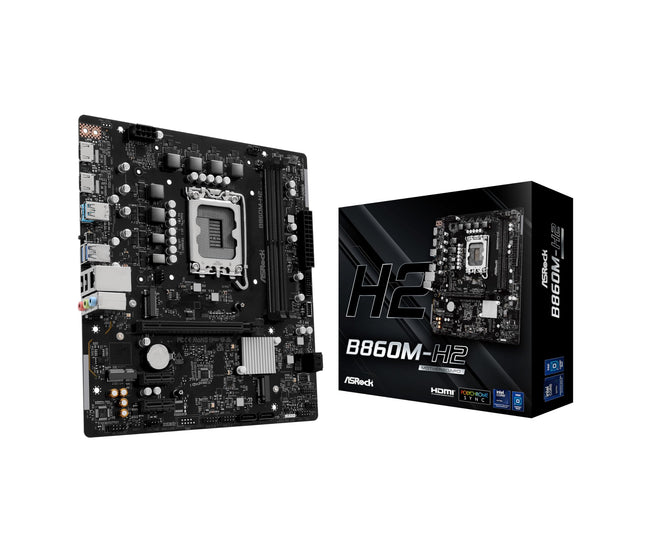

The ASRock B860M-H2 is a compact Micro-ATX motherboard built around the Intel B860 chipset and LGA1851 socket for Intel Core Ultra Series 2 processors. It uses dual-channel DDR5 memory with two DIMM slots, supporting up to 128GB and speeds up to 8333+ MT/s (OC), giving modern desktop builds a current-generation memory platform in a space-efficient board.Expansion is centred on one full-length PCIe 4.0 x16 slot for a graphics card, alongside two PCIe 4.0 x1 slots. Storage options include one PCIe Gen5 x4 Blazing M.2 socket, one PCIe Gen4 x4 Hyper M.2 socket and four SATA III connectors, allowing a practical mix of high-speed NVMe storage and conventional SATA drives. Dual HDMI 2.1 outputs are available when used with a processor featuring integrated graphics.Connectivity includes rear USB 3.2 Gen2x2 Type-C up to 20Gbps, front USB 3.2 Gen1 Type-C support, additional USB Type-A ports and Realtek Gigabit Ethernet. The Realtek ALC897 codec provides 7.1-channel HD audio, while BIOS Flashback allows firmware updates without a CPU or memory installed. The board does not include onboard Wi-Fi or Bluetooth, but an M.2 Key E slot and antenna mounting points allow an optional wireless module to be added. Brand ASRock Model B860M-H2 MPN 90-MXBS00-A0UAYZ Socket LGA 1851 Chipset Intel B860 Supported Processors Intel Core Ultra Series 2 Form Factor Micro-ATX Memory Technology DDR5 Memory Slots 2 × DIMM Maximum Memory 128GB Memory Speed Up to 8333+ MT/s (OC) PCIe x16 Slots 1 × PCIe x16 (PCIe 4.0 x16) M.2 Slots 2 SATA Ports 4 × SATA III Wireless Connectivity None LAN 1 Gigabit Ethernet Video Outputs 2 × HDMI 2.1 USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

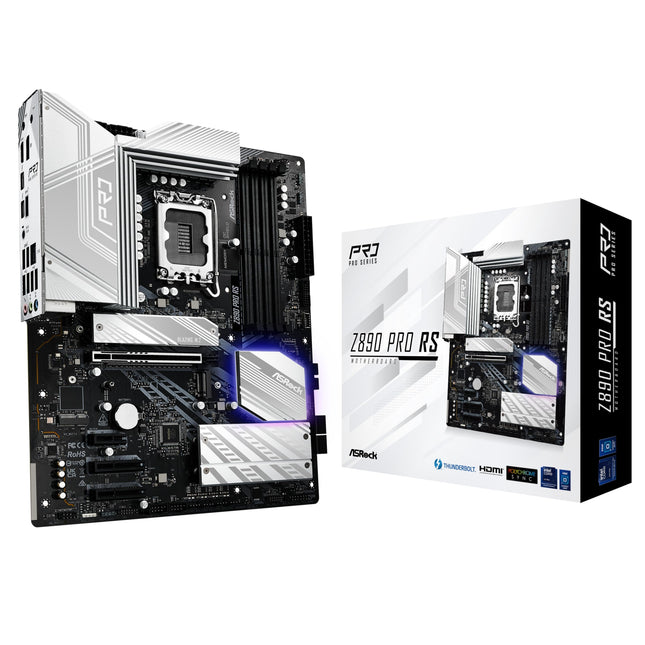

ASRock Z890 Pro RS is an ATX Intel Z890 motherboard for the LGA 1851 platform and Intel Core Ultra Processors Series 2. Four DDR5 DIMM slots support up to 256GB, with ASRock listing memory overclocking up to 9066+ MT/s under suitable configurations. The CPU-connected graphics slot is PCIe 5.0 x16. Two additional long expansion slots are connected through the chipset at PCIe 4.0 x4, while a PCIe 4.0 x1 slot is available for smaller cards.Storage is built around four M.2 sockets and four SATA III ports. One M.2 socket supports PCIe 5.0 x4 and the remaining storage sockets provide PCIe 4.0 connectivity, with one also supporting SATA M.2 drives. Rear I/O includes two Thunderbolt 4/USB4 Type-C ports capable of up to 40Gb/s, along with USB Type-A connectivity. BIOS Flashback is included for firmware maintenance.This non-Wi-Fi Z890 Pro RS does not include a wireless module or Bluetooth, although an M.2 Key E socket is available for optional Wi-Fi/BT hardware. Wired networking is 2.5 Gigabit Ethernet. Display outputs include HDMI, DisplayPort and Thunderbolt 4 Type-C when used with a processor that provides integrated graphics. Audio is 7.1-channel HD audio using the Realtek ALC897 codec. Do not transfer Wi-Fi 6E specifications from the separate Z890 Pro RS WiFi model. Brand ASRock Model Z890 Pro RS MPN 90-MXBP10-A0UAYZ Socket LGA 1851 Chipset Intel Z890 Supported Processors Intel Core Ultra Series 2 Form Factor ATX Memory Technology DDR5 Memory Slots 4 × DIMM Maximum Memory 256GB Memory Speed Up to 9066+ MT/s (OC) PCIe x16 Slots 3 × PCIe x16 (PCIe 5.0 x16 / 2 × PCIe 4.0 x4) M.2 Slots 4 SATA Ports 4 × SATA III Wireless Connectivity None LAN 2.5 Gigabit Ethernet Video Outputs HDMI, DisplayPort, Thunderbolt 4 Type-C USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

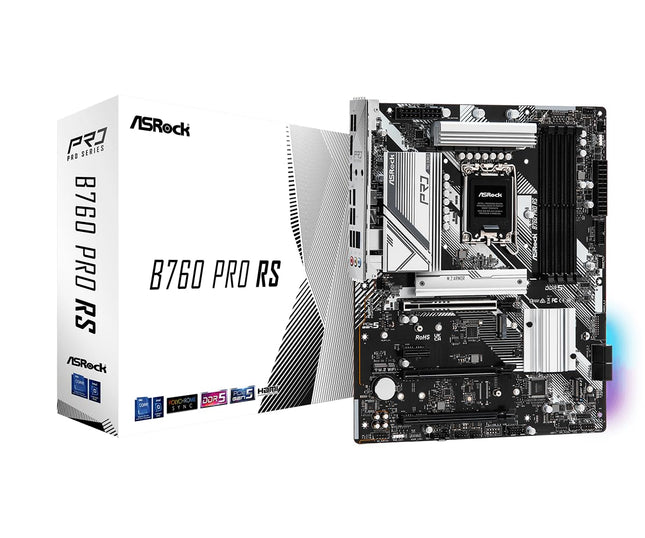

ASRock B760 Pro RS is an ATX Intel B760 motherboard for the LGA 1700 platform, supporting Intel Core 12th, 13th and 14th Gen desktop processors. This exact model uses DDR5 rather than DDR4, with four DIMM slots supporting up to 256GB and ASRock-listed speeds up to 7200+ MT/s when overclocked. The primary graphics slot is PCIe 5.0 x16, providing a full-width CPU-connected path for a discrete graphics card.Three physical x16-length connectors are present: the main PCIe 5.0 x16 slot, a chipset-connected PCIe 4.0 slot operating at x4 and another long connector operating at PCIe 3.0 x1. Storage includes three M.2 sockets and four SATA III ports. An M.2 Key E socket is available for an optional wireless module; it is not counted as an M.2 storage slot and does not mean Wi-Fi is included.The B760 Pro RS has no integrated Wi-Fi or Bluetooth. Wired networking is 2.5 Gigabit Ethernet. Rear display outputs include HDMI and DisplayPort for Intel processors with integrated graphics, while USB connectivity includes Type-A and Type-C. Audio is 7.1-channel HD audio and firmware is AMI UEFI. Do not confuse this product with B760 Pro RS/D4 or Wi-Fi variants, because memory technology and wireless hardware differ. Brand ASRock Model B760 Pro RS MPN 90-MXBKS0-A0UAYZ Socket LGA 1700 Chipset Intel B760 Supported Processors Intel Core 12th / 13th / 14th Gen Form Factor ATX Memory Technology DDR5 Memory Slots 4 × DIMM Maximum Memory 256GB Memory Speed Up to 7200+ MT/s (OC) PCIe x16 Slots 3 × PCIe x16 (PCIe 5.0 x16 / PCIe 4.0 x4 / PCIe 3.0 x1) M.2 Slots 3 SATA Ports 4 × SATA III Wireless Connectivity None LAN 2.5 Gigabit Ethernet Video Outputs HDMI, DisplayPort USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

ASUS PRIME B650M-A WIFI II is a Micro-ATX AMD B650 motherboard for the AM5 platform, supporting Ryzen 7000, 8000 and 9000 Series desktop processors. Four DDR5 DIMM slots support up to 192GB, with ASUS listing overclocked speeds up to 7600+ MT/s. The primary PCIe x16-length slot operates at PCIe 4.0 x16 with supported Ryzen 7000 and 9000 processors; selected Ryzen 8000 models can reduce its available lane width.Storage comprises two M.2 sockets and four SATA III ports. The first M.2 socket supports PCIe 5.0 x4 with compatible processors, while the second provides PCIe 4.0 x4. The board also offers BIOS FlashBack and ASUS Q-LED diagnostics. Three physical PCIe x16-length connectors are present in total, although the two chipset-connected secondary slots operate electrically at x1.Integrated networking includes 2.5 Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.2. Rear display connectivity provides HDMI, DisplayPort and VGA for compatible processors with integrated graphics. USB support includes Type-A plus a front-panel Type-C header, and onboard audio provides 7.1-channel HD output. This WIFI II version should not be confused with non-Wi-Fi PRIME B650M-A models, which differ in wireless connectivity and may differ in board-level specifications. Brand ASUS Model PRIME B650M-A WIFI II MPN 90MB1EG0-M0EAY0 Socket AM5 Chipset AMD B650 Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series Form Factor Micro-ATX Memory Technology DDR5 Memory Slots 4 × DIMM Maximum Memory 192GB Memory Speed Up to 7600+ MT/s (OC) PCIe x16 Slots 3 × PCIe x16 (PCIe 4.0 x16 / PCIe 4.0 x1 / PCIe 4.0 x1) M.2 Slots 2 SATA Ports 4 × SATA III Wireless Connectivity Wi-Fi 6, Bluetooth 5.2 LAN 2.5 Gigabit Ethernet Video Outputs HDMI, DisplayPort, VGA USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

ASUS PRIME B550-PLUS is an ATX AMD B550 motherboard for the AM4 platform, supporting Ryzen 3000 Series, Ryzen 4000 G-Series and Ryzen 5000 Series desktop processors. Four DDR4 DIMM slots support up to 128GB, with the current ASUS specification listing memory overclocking up to 4600 MT/s. The main graphics slot can operate at PCIe 4.0 x16 with supported Ryzen 3000 and 5000 processors, while compatible G-Series processors use PCIe 3.0.Expansion includes two physical PCIe x16-length slots, with the secondary slot connected at PCIe 3.0 x4. Storage is provided by two M.2 sockets and six SATA III ports, allowing NVMe and SATA devices to be combined in one system. ASUS includes an M.2 heatsink, PCIe SafeSlot reinforcement, Q-LED diagnostics and UEFI BIOS features for assembly and troubleshooting.This model has no integrated Wi-Fi or Bluetooth. Wired networking is 1 Gigabit Ethernet, and rear connectivity includes USB Type-A and USB Type-C together with HDMI and DisplayPort for compatible processors with integrated graphics. Audio is 7.1-channel HD audio. The exact SKU is PRIME B550-PLUS, not PRIME B550-PLUS WIFI II or another similarly named PRIME B550 variant, so wireless features must not be assumed. Brand ASUS Model PRIME B550-PLUS MPN 90MB14U0-M0EAY0 Socket AM4 Chipset AMD B550 Supported Processors AMD Ryzen 3XXX / 4XXX G-Series / 5XXX Series Form Factor ATX Memory Technology DDR4 Memory Slots 4 × DIMM Maximum Memory 128GB Memory Speed Up to 4600 MT/s (OC) PCIe x16 Slots 2 × PCIe x16 (PCIe 4.0 x16 / PCIe 3.0 x4) M.2 Slots 2 SATA Ports 6 × SATA III Wireless Connectivity None LAN 1 Gigabit Ethernet Video Outputs HDMI, DisplayPort USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

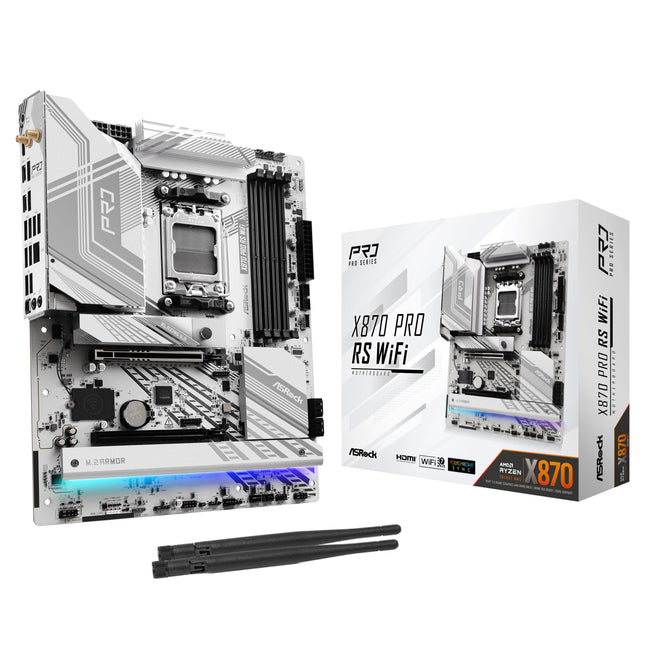

ASRock X870 Pro RS WiFi is an ATX AMD X870 motherboard for the AM5 platform, supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Four DDR5 DIMM slots support up to 256GB, with ASRock listing speeds up to 8000+ MT/s when overclocked. The primary graphics slot is PCIe 5.0 x16 with supported Ryzen 9000 and 7000 processors; selected Ryzen 8000 models can operate it at reduced lane width or generation.Storage includes three M.2 sockets plus four SATA III ports. The main M.2 socket is PCIe 5.0 x4, with additional PCIe 4.0 and PCIe 3.0/SATA-capable M.2 connectivity for further drives. ASRock adds a toolless multi-layer M.2 heatsink, an M.2 bottom heatsink and BIOS Flashback. Two rear USB4 Type-C ports provide up to 40Gb/s connectivity and can carry display output with a processor that provides integrated graphics.Integrated networking consists of 2.5 Gigabit Ethernet, Wi-Fi 7 and Bluetooth 5.4. Rear display options include HDMI and USB4 Type-C, while other USB connectivity covers Type-A and Type-C. The board uses 7.1-channel HD audio with a Realtek ALC1220 codec. This is the X870 Pro RS WiFi model; its wireless hardware and storage configuration should not be transferred to non-Wi-Fi or other Pro RS variants. Brand ASRock Model X870 Pro RS WiFi MPN 90-MXBQ00-A0UAYZ Socket AM5 Chipset AMD X870 Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series Form Factor ATX Memory Technology DDR5 Memory Slots 4 × DIMM Maximum Memory 256GB Memory Speed Up to 8000+ MT/s (OC) PCIe x16 Slots 2 × PCIe x16 (PCIe 5.0 x16 / PCIe 4.0 x4) M.2 Slots 3 SATA Ports 4 × SATA III Wireless Connectivity Wi-Fi 7, Bluetooth 5.4 LAN 2.5 Gigabit Ethernet Video Outputs HDMI, USB4 Type-C USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

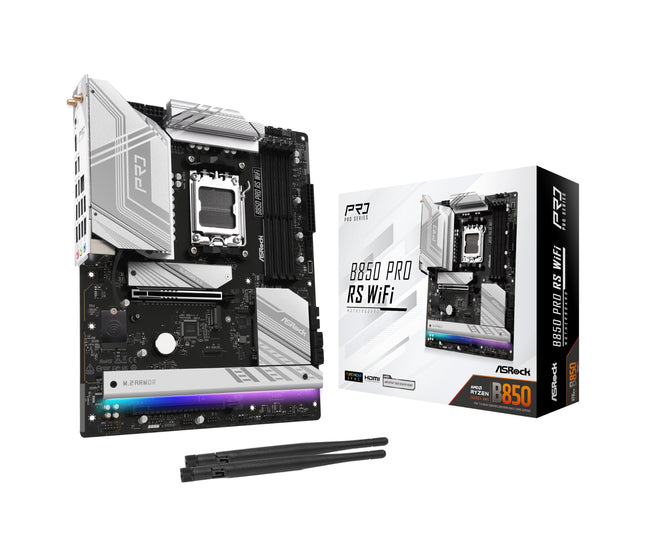

ASRock B850 Pro RS WiFi is an ATX AMD B850 motherboard for the AM5 platform, supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Four DDR5 DIMM slots support up to 256GB, with ASRock listing speeds up to 8000+ MT/s when overclocked. The primary graphics slot is PCIe 5.0 x16 with Ryzen 9000 and 7000 processors; selected Ryzen 8000 CPUs can use a lower lane width or PCIe generation, so CPU-specific limits should be checked.Storage includes four M.2 sockets for SSDs and four SATA III ports. The top M.2 socket supports PCIe 5.0 x4, while the remaining sockets provide PCIe 4.0 or PCIe 3.0 connectivity depending on position. ASRock also provides M.2 heatsinks, a toolless multi-layer M.2 heatsink design and BIOS Flashback for easier installation and firmware maintenance.Networking combines 2.5 Gigabit Ethernet with integrated Wi-Fi 6E and Bluetooth 5.2. Rear connectivity includes USB Type-A and Type-C, while HDMI and USB Type-C with DisplayPort Alt Mode provide display options for compatible processors with integrated graphics. Audio is 7.1-channel HD audio using the Realtek ALC897 codec. This is the Wi-Fi version and should not be confused with similarly named non-wireless or different-chipset Pro RS boards. Brand ASRock Model B850 Pro RS WiFi MPN 90-MXBQL0-A0UAYZ Socket AM5 Chipset AMD B850 Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series Form Factor ATX Memory Technology DDR5 Memory Slots 4 × DIMM Maximum Memory 256GB Memory Speed Up to 8000+ MT/s (OC) PCIe x16 Slots 2 × PCIe x16 (PCIe 5.0 x16 / PCIe 4.0 x4) M.2 Slots 4 SATA Ports 4 × SATA III Wireless Connectivity Wi-Fi 6E, Bluetooth 5.2 LAN 2.5 Gigabit Ethernet Video Outputs HDMI, USB Type-C (DisplayPort Alt Mode) USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

ASUS TUF GAMING B650-PLUS WIFI is an ATX AMD B650 motherboard for the AM5 platform, designed for Ryzen 7000, 8000 and 9000 Series desktop processors. It uses DDR5 memory across four DIMM slots and supports up to 256GB, giving the board plenty of headroom for gaming, content creation and higher-capacity desktop builds. The primary PCIe x16 slot is PCIe 4.0, while storage expansion includes three M.2 sockets and four SATA III ports. With Ryzen 7000 or 9000 processors, the first M.2 socket supports PCIe 5.0 x4, allowing use of next-generation NVMe SSDs without changing the graphics-slot configuration. ASUS also provides M.2 heatsinking, Q-Latch installation features and BIOS FlashBack for easier upgrades and maintenance. Networking is covered by integrated 2.5 Gigabit Ethernet plus Wi-Fi 6 and Bluetooth 5.2. Rear connectivity includes USB Type-A and Type-C, including a USB 3.2 Gen 2x2 Type-C port, together with HDMI and DisplayPort for compatible processors with integrated graphics. The board also includes 7.1-channel HD audio, a pre-mounted I/O shield, TUF protection features and multiple fan, RGB and addressable Gen 2 headers for a clean, expandable PC build. Brand ASUS Model TUF GAMING B650-PLUS WIFI MPN 90MB1BZ0-M0EAY0 Socket AM5 Chipset AMD B650 Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series Form Factor ATX Memory Technology DDR5 Memory Slots 4 × DIMM Maximum Memory 256GB Memory Speed Up to 7600+ MT/s (OC) PCIe x16 Slots 2 × PCIe x16 (PCIe 4.0 x16 / PCIe 4.0 x4) M.2 Slots 3 SATA Ports 4 × SATA III Wireless Connectivity Wi-Fi 6, Bluetooth 5.2 LAN 2.5 Gigabit Ethernet Video Outputs HDMI, DisplayPort USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less

ASUS TUF GAMING B550-PLUS WIFI II is an ATX AMD B550 motherboard for the AM4 platform, supporting Ryzen 3000 Series, 4000 G-Series and 5000 Series desktop processors. Four DDR4 DIMM slots support up to 128GB of memory, with officially listed overclocked speeds reaching 4866 MT/s depending on the processor and memory configuration. For expansion, the board provides two physical PCIe x16 slots. The primary slot operates at PCIe 4.0 x16 with supported Ryzen 3000 and 5000 desktop CPUs, while compatible G-Series processors use PCIe 3.0. Storage includes two M.2 sockets and six SATA III ports, giving a useful mix of high-speed NVMe and conventional SATA connectivity. BIOS FlashBack, Q-LED diagnostics, SafeSlot reinforcement and an M.2 heatsink simplify building and servicing the system. Integrated networking includes 2.5 Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.2. Rear I/O provides USB Type-A and USB Type-C, HDMI and DisplayPort, optical S/PDIF and 7.1-channel HD audio. The combination of AM4 compatibility, PCIe 4.0 graphics support, dual M.2 storage and modern wireless networking makes it a practical upgrade base for a wide range of Ryzen gaming and general-purpose PCs. Brand ASUS Model TUF GAMING B550-PLUS WIFI II MPN 90MB19U0-M0EAY0 Socket AM4 Chipset AMD B550 Supported Processors AMD Ryzen 3XXX / 4XXX G-Series / 5XXX Series Form Factor ATX Memory Technology DDR4 Memory Slots 4 × DIMM Maximum Memory 128GB Memory Speed Up to 4866 MT/s (OC) PCIe x16 Slots 2 × PCIe x16 (PCIe 4.0 x16 / PCIe 3.0 x4) M.2 Slots 2 SATA Ports 6 × SATA III Wireless Connectivity Wi-Fi 6, Bluetooth 5.2 LAN 2.5 Gigabit Ethernet Video Outputs HDMI, DisplayPort USB USB Type-A, USB Type-C Audio 7.1 Channel HD Audio

Read more less
