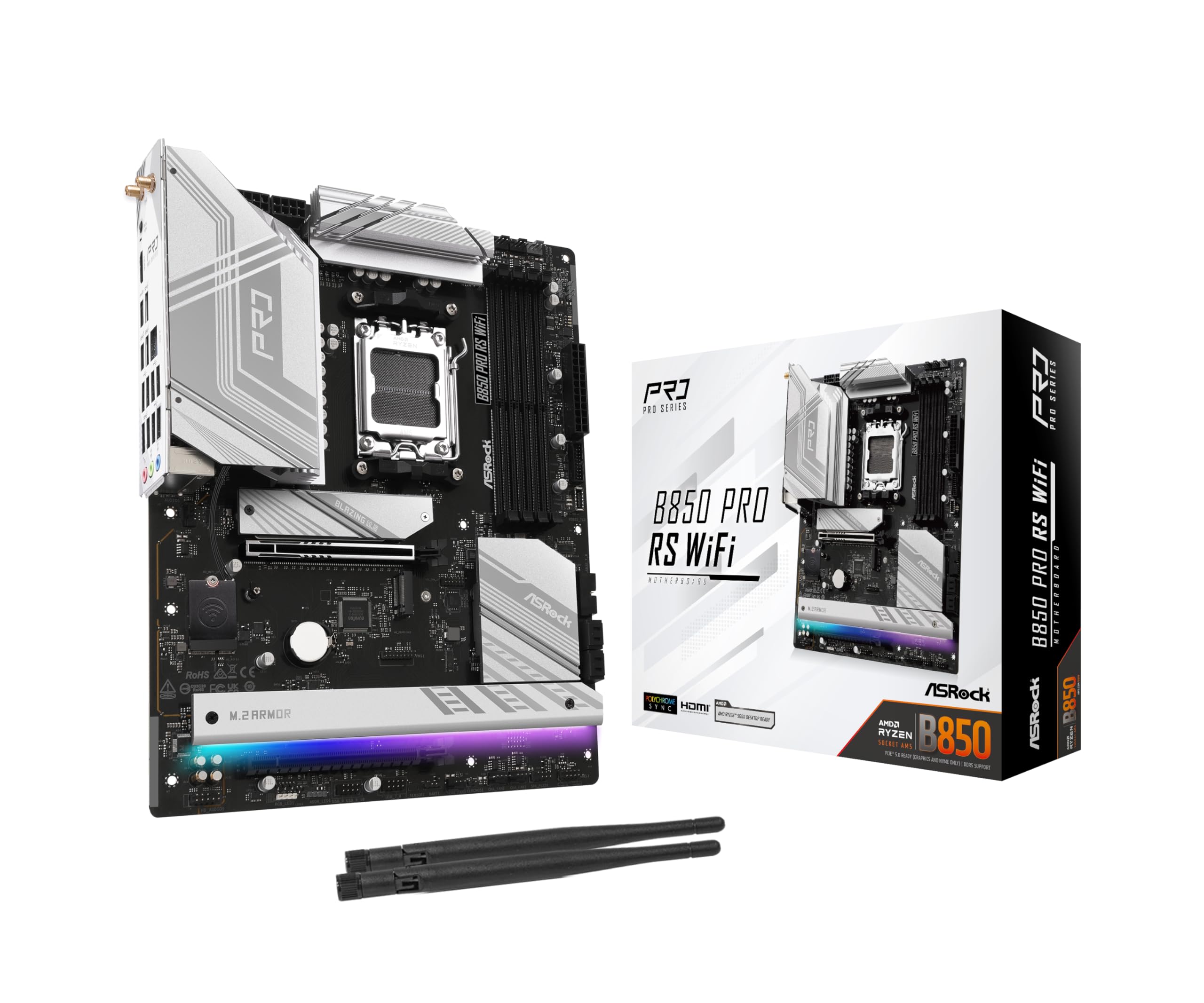

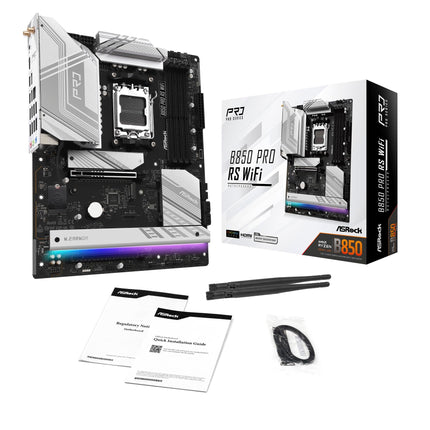

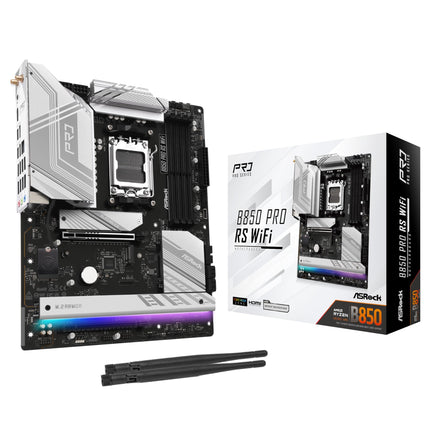

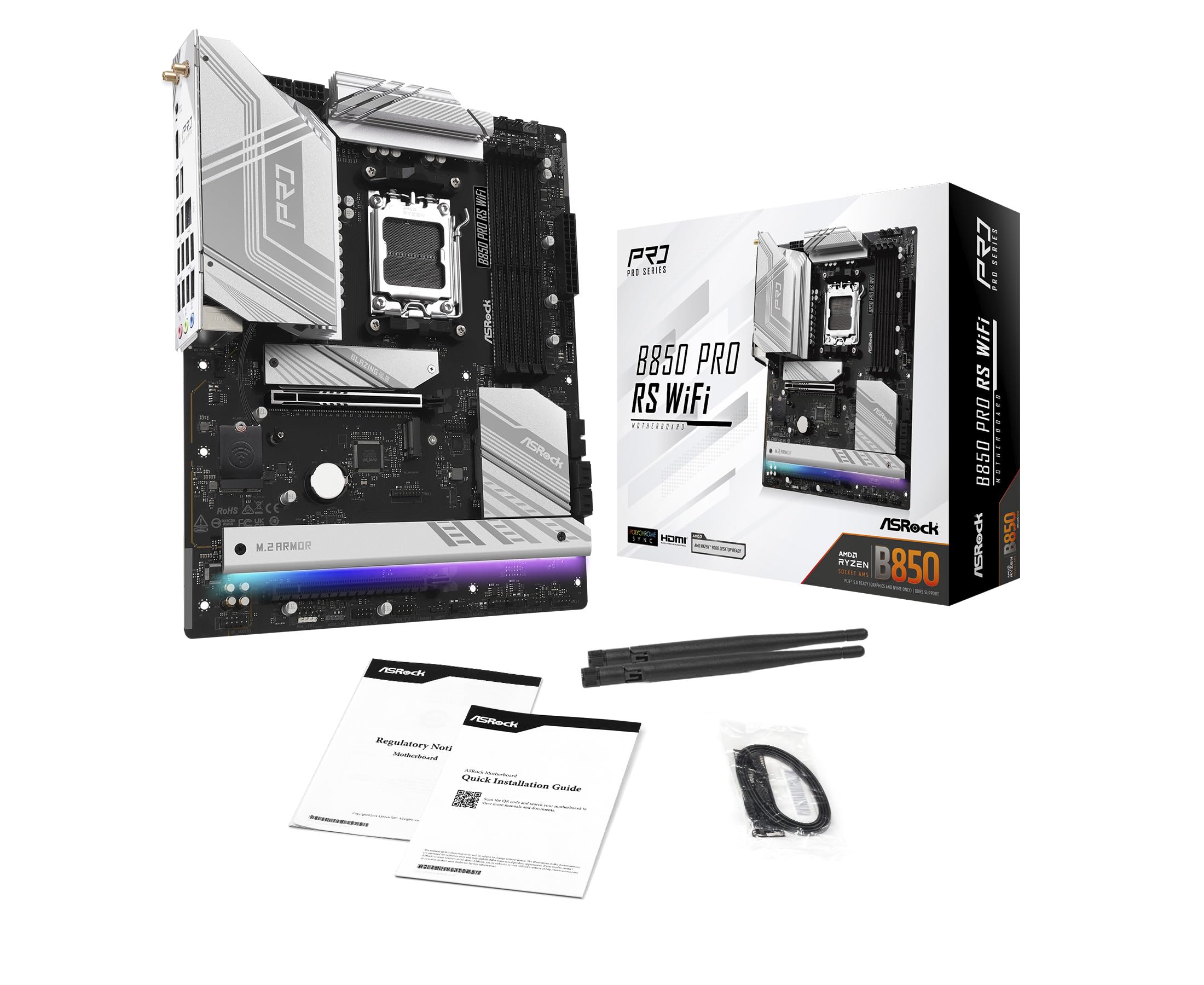

ASRock B850 Pro RS WiFi B850 AM5 ATX DDR5 PCIe 5.0 Desktop Motherboard

Description

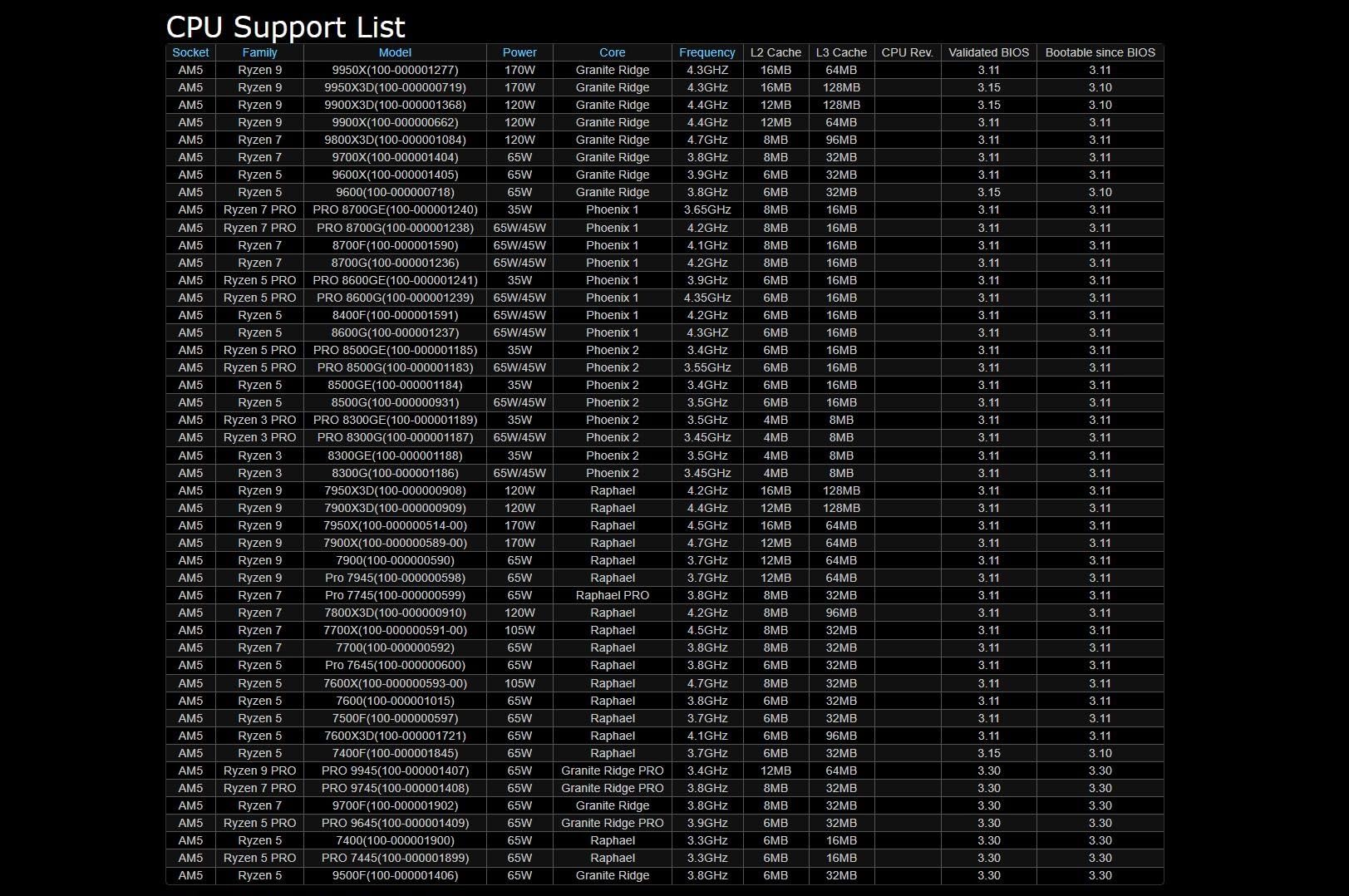

ASRock B850 Pro RS WiFi is an ATX AMD B850 motherboard for the AM5 platform, supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Four DDR5 DIMM slots support up to 256GB, with ASRock listing speeds up to 8000+ MT/s when overclocked. The primary graphics slot is PCIe 5.0 x16 with Ryzen 9000 and 7000 processors; selected Ryzen 8000 CPUs can use a lower lane width or PCIe generation, so CPU-specific limits should be checked.

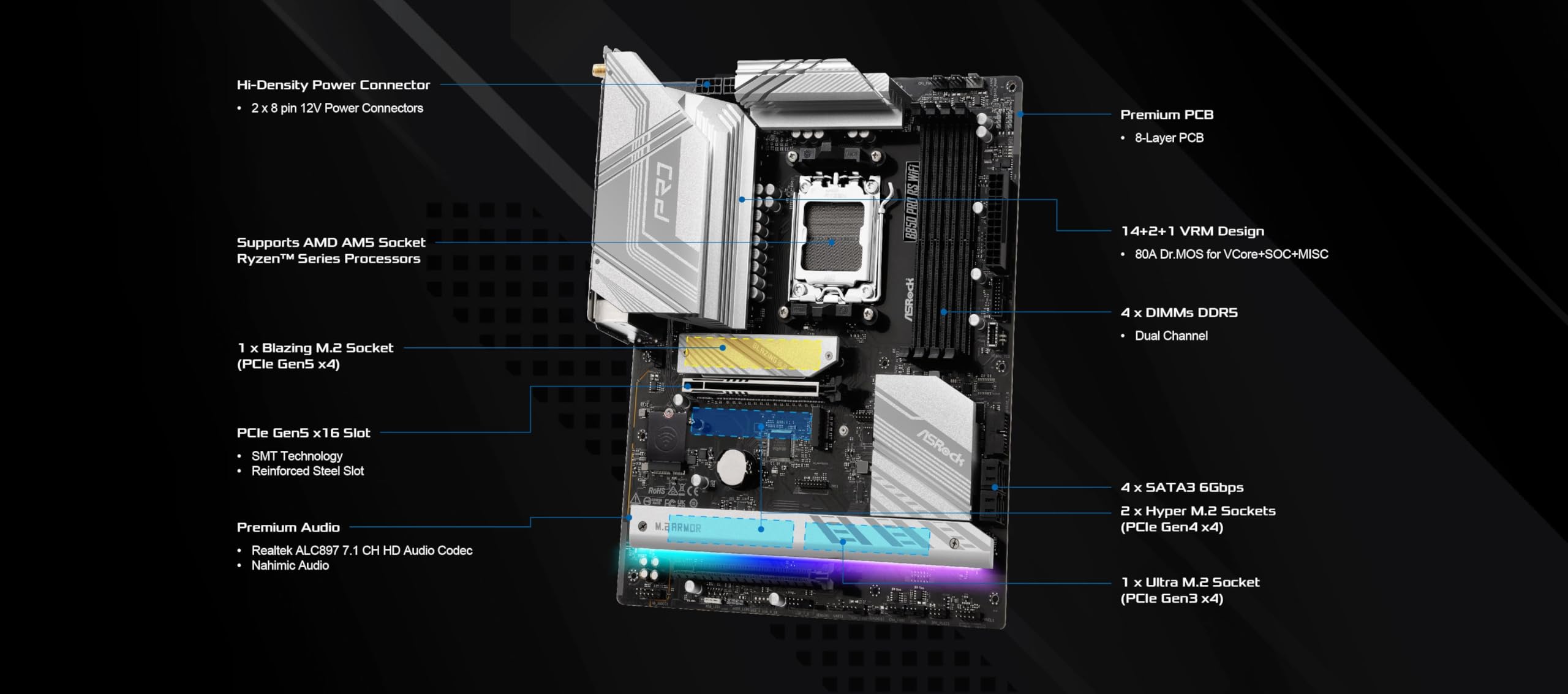

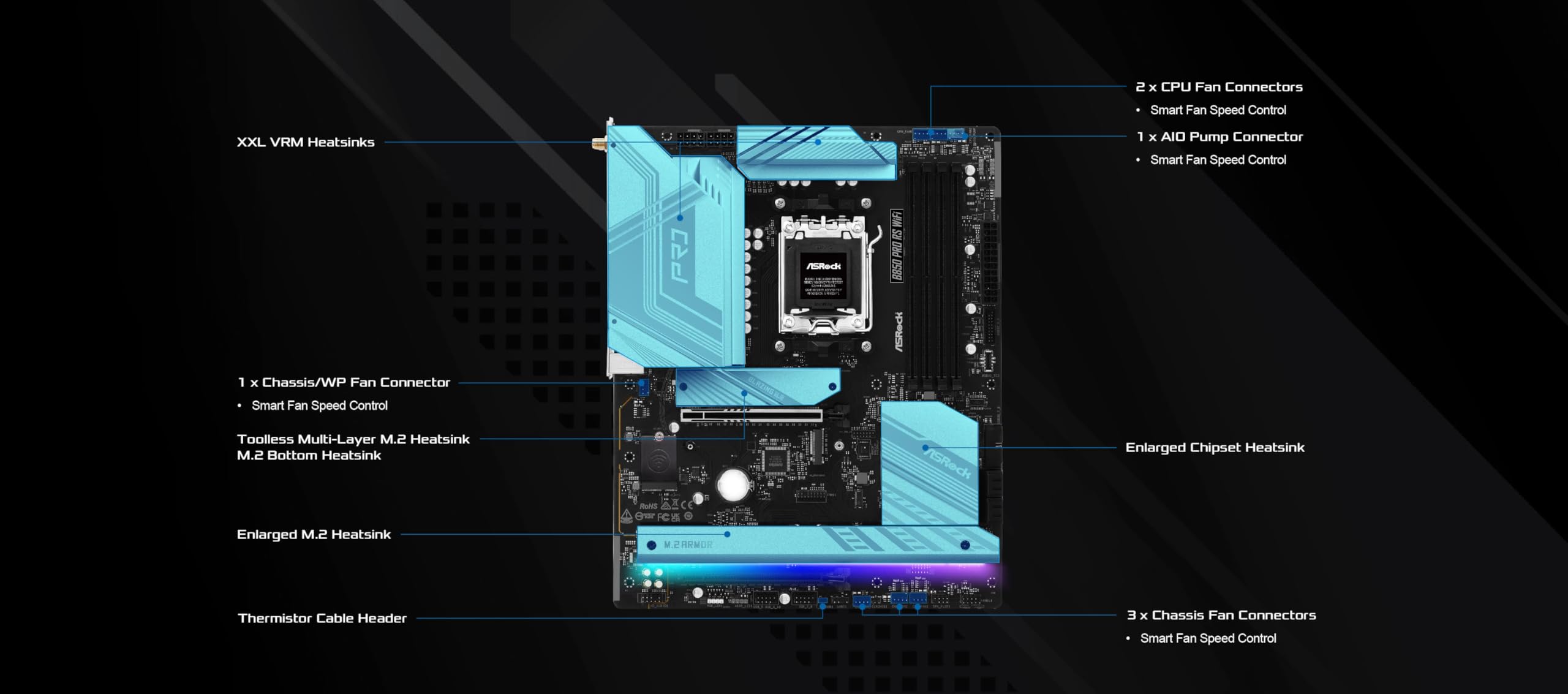

Storage includes four M.2 sockets for SSDs and four SATA III ports. The top M.2 socket supports PCIe 5.0 x4, while the remaining sockets provide PCIe 4.0 or PCIe 3.0 connectivity depending on position. ASRock also provides M.2 heatsinks, a toolless multi-layer M.2 heatsink design and BIOS Flashback for easier installation and firmware maintenance.

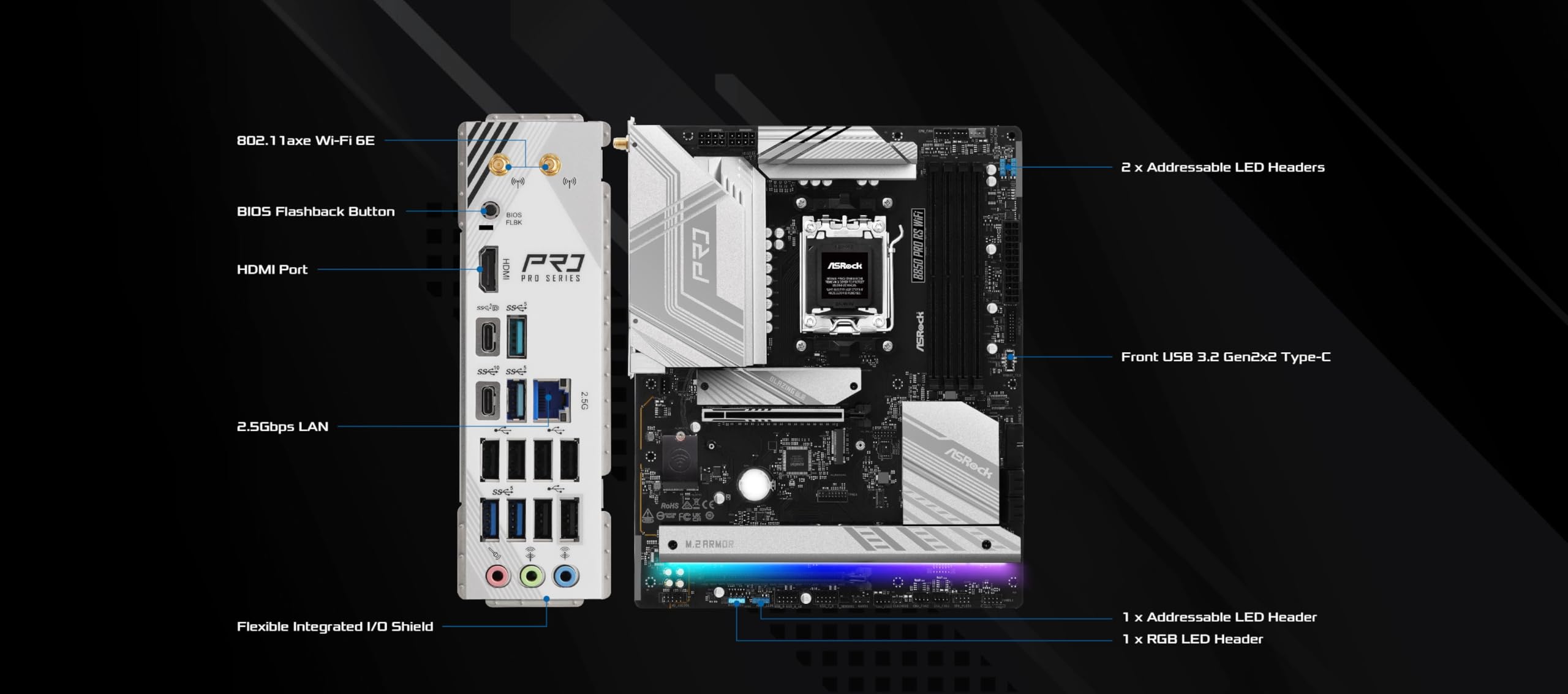

Networking combines 2.5 Gigabit Ethernet with integrated Wi-Fi 6E and Bluetooth 5.2. Rear connectivity includes USB Type-A and Type-C, while HDMI and USB Type-C with DisplayPort Alt Mode provide display options for compatible processors with integrated graphics. Audio is 7.1-channel HD audio using the Realtek ALC897 codec. This is the Wi-Fi version and should not be confused with similarly named non-wireless or different-chipset Pro RS boards.

Brand ASRock
Model B850 Pro RS WiFi
MPN 90-MXBQL0-A0UAYZ
Socket AM5
Chipset AMD B850

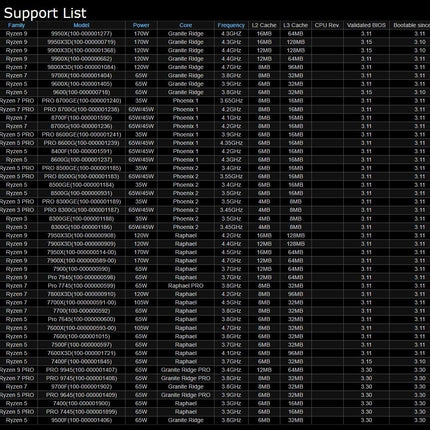

Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series
Form Factor ATX
Memory Technology DDR5
Memory Slots 4 × DIMM
Maximum Memory 256GB
Memory Speed Up to 8000+ MT/s (OC)
PCIe x16 Slots 2 × PCIe x16 (PCIe 5.0 x16 / PCIe 4.0 x4)
M.2 Slots 4
SATA Ports 4 × SATA III
Wireless Connectivity Wi-Fi 6E, Bluetooth 5.2
LAN 2.5 Gigabit Ethernet
Video Outputs HDMI, USB Type-C (DisplayPort Alt Mode)
USB USB Type-A, USB Type-C
Audio 7.1 Channel HD Audio
Product form

Barcode: 4711581490178

ASRock B850 Pro RS WiFi B850 AM5 ATX DDR5 PCIe 5.0 Desktop Motherboard

ASRock B850 Pro RS WiFi is an ATX AMD B850 motherboard for the AM5 platform, supporting AMD Ryzen 9000, 8000... Read more

3 in stock Next day delivery

£155.00 Incl. VAT
