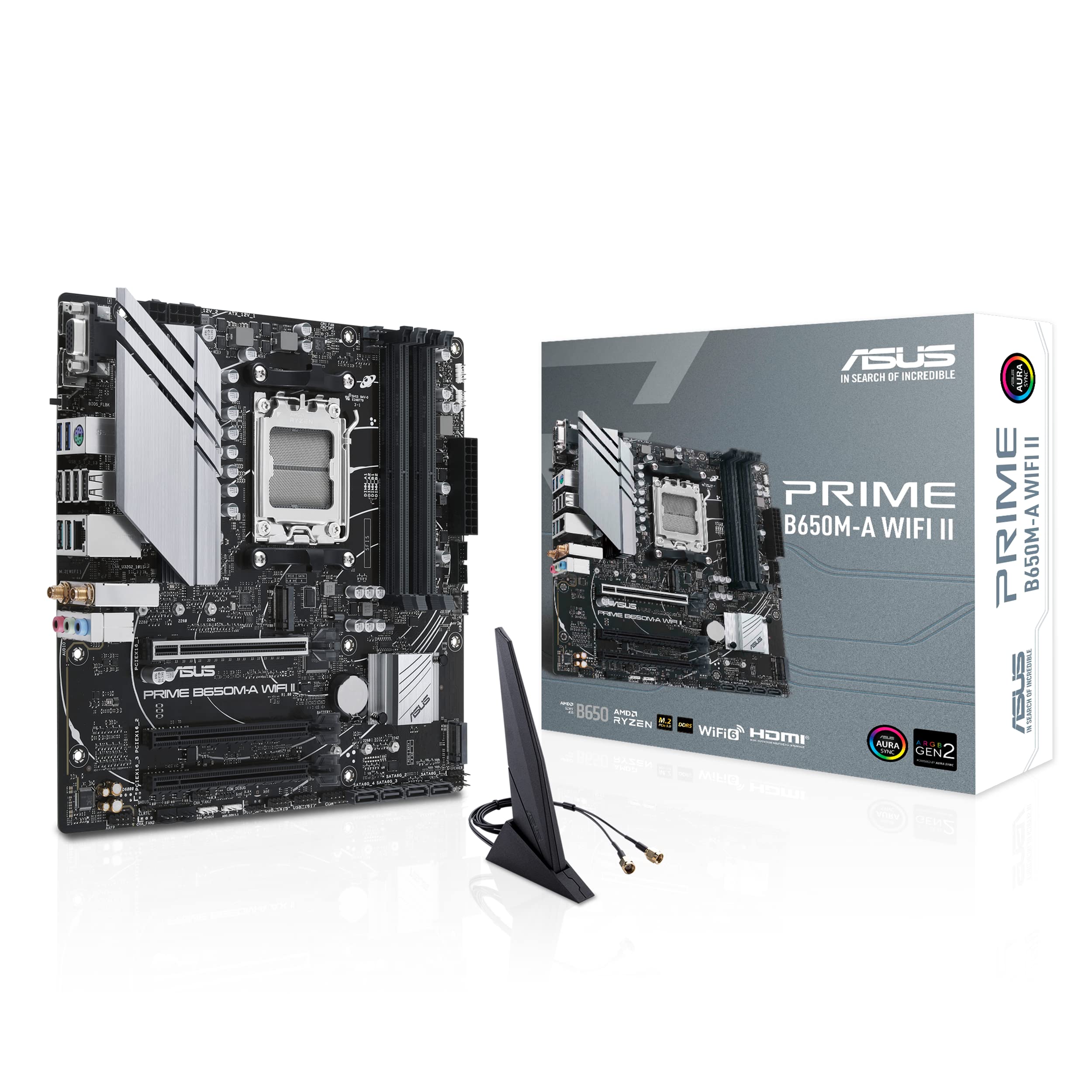

ASUS PRIME B650M-A WiFi II B650 AM5 Micro-ATX DDR5 Desktop Motherboard

Description

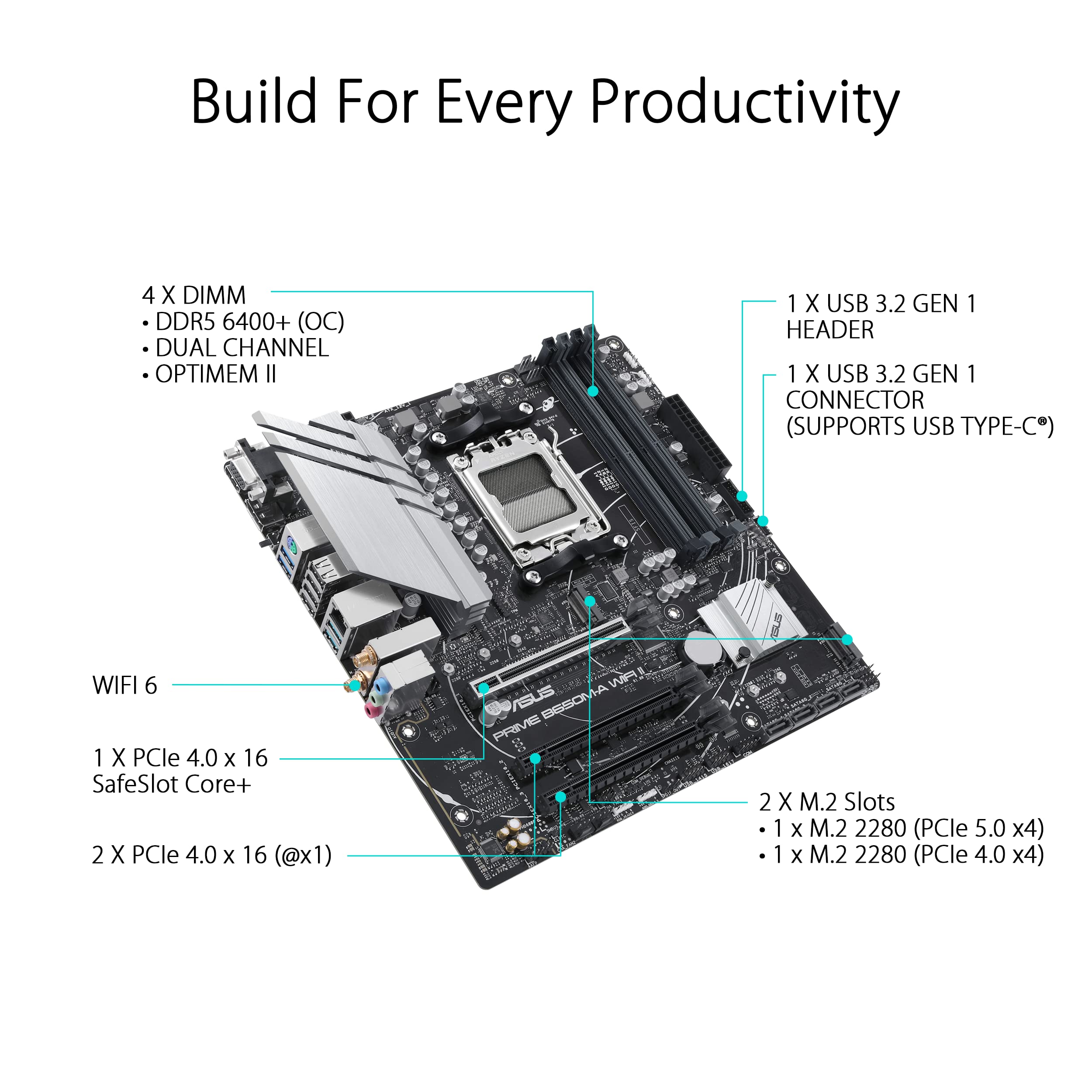

ASUS PRIME B650M-A WIFI II is a Micro-ATX AMD B650 motherboard for the AM5 platform, supporting Ryzen 7000, 8000 and 9000 Series desktop processors. Four DDR5 DIMM slots support up to 192GB, with ASUS listing overclocked speeds up to 7600+ MT/s. The primary PCIe x16-length slot operates at PCIe 4.0 x16 with supported Ryzen 7000 and 9000 processors; selected Ryzen 8000 models can reduce its available lane width.

Storage comprises two M.2 sockets and four SATA III ports. The first M.2 socket supports PCIe 5.0 x4 with compatible processors, while the second provides PCIe 4.0 x4. The board also offers BIOS FlashBack and ASUS Q-LED diagnostics. Three physical PCIe x16-length connectors are present in total, although the two chipset-connected secondary slots operate electrically at x1.

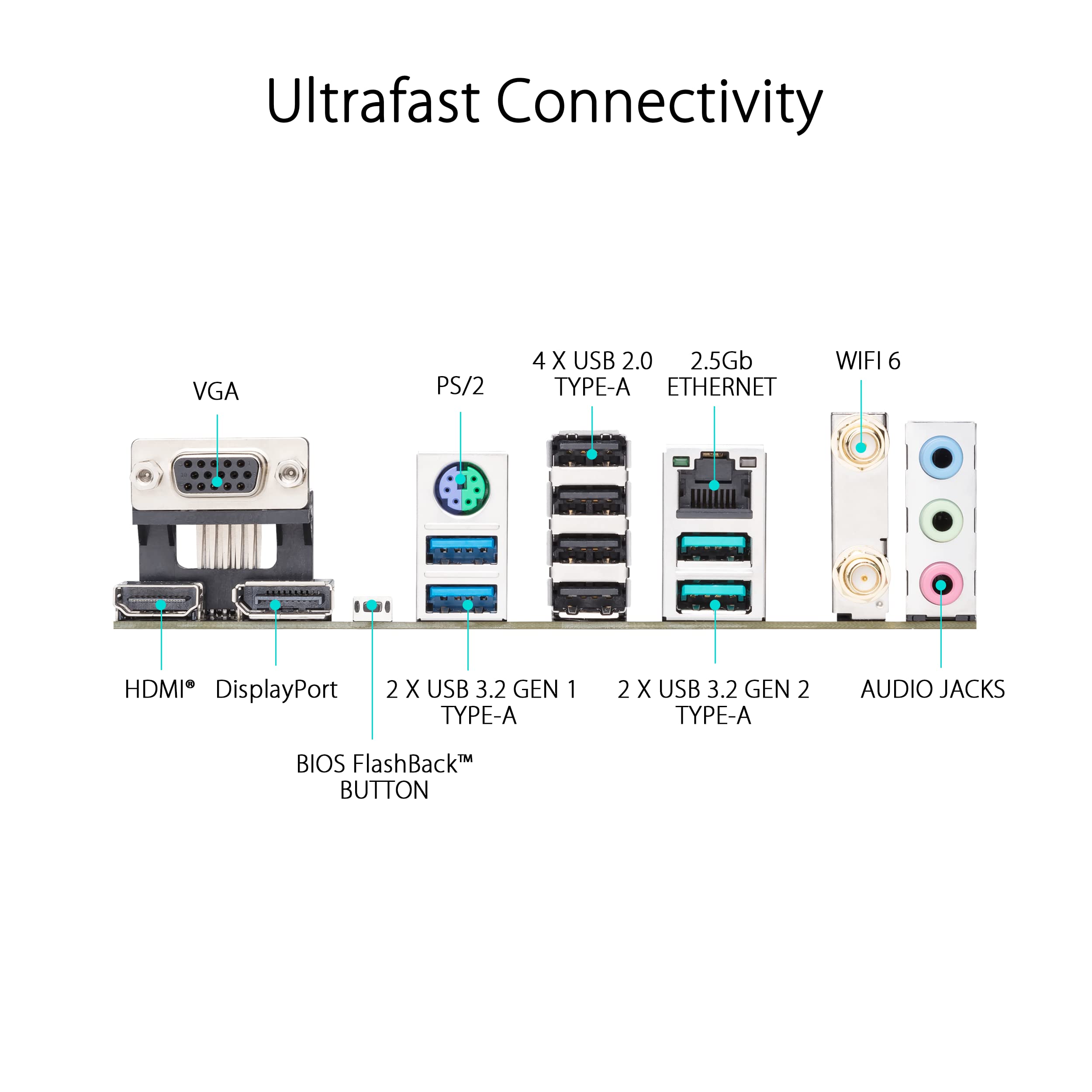

Integrated networking includes 2.5 Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.2. Rear display connectivity provides HDMI, DisplayPort and VGA for compatible processors with integrated graphics. USB support includes Type-A plus a front-panel Type-C header, and onboard audio provides 7.1-channel HD output. This WIFI II version should not be confused with non-Wi-Fi PRIME B650M-A models, which differ in wireless connectivity and may differ in board-level specifications.

Brand ASUS
Model PRIME B650M-A WIFI II
MPN 90MB1EG0-M0EAY0
Socket AM5
Chipset AMD B650
Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series
Form Factor Micro-ATX
Memory Technology DDR5
Memory Slots 4 × DIMM
Maximum Memory 192GB
Memory Speed Up to 7600+ MT/s (OC)
PCIe x16 Slots 3 × PCIe x16 (PCIe 4.0 x16 / PCIe 4.0 x1 / PCIe 4.0 x1)
M.2 Slots 2
SATA Ports 4 × SATA III
Wireless Connectivity Wi-Fi 6, Bluetooth 5.2
LAN 2.5 Gigabit Ethernet
Video Outputs HDMI, DisplayPort, VGA
USB USB Type-A, USB Type-C
Audio 7.1 Channel HD Audio
Product form

Barcode: 4711387034934

ASUS PRIME B650M-A WiFi II B650 AM5 Micro-ATX DDR5 Desktop Motherboard

ASUS PRIME B650M-A WIFI II is a Micro-ATX AMD B650 motherboard for the AM5 platform, supporting Ryzen 7000, 8000 and... Read more

3 in stock Next day delivery

£145.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      klarna
    • Free shipping on all orders above £ 100
    • No hassle returns, 14 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    ASUS PRIME B650M-A WIFI II is a Micro-ATX AMD B650 motherboard for the AM5 platform, supporting Ryzen 7000, 8000 and 9000 Series desktop processors. Four DDR5 DIMM slots support up to 192GB, with ASUS listing overclocked speeds up to 7600+ MT/s. The primary PCIe x16-length slot operates at PCIe 4.0 x16 with supported Ryzen 7000 and 9000 processors; selected Ryzen 8000 models can reduce its available lane width.

    Storage comprises two M.2 sockets and four SATA III ports. The first M.2 socket supports PCIe 5.0 x4 with compatible processors, while the second provides PCIe 4.0 x4. The board also offers BIOS FlashBack and ASUS Q-LED diagnostics. Three physical PCIe x16-length connectors are present in total, although the two chipset-connected secondary slots operate electrically at x1.

    Integrated networking includes 2.5 Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.2. Rear display connectivity provides HDMI, DisplayPort and VGA for compatible processors with integrated graphics. USB support includes Type-A plus a front-panel Type-C header, and onboard audio provides 7.1-channel HD output. This WIFI II version should not be confused with non-Wi-Fi PRIME B650M-A models, which differ in wireless connectivity and may differ in board-level specifications.

    Brand ASUS
    Model PRIME B650M-A WIFI II
    MPN 90MB1EG0-M0EAY0
    Socket AM5
    Chipset AMD B650
    Supported Processors AMD Ryzen 7XXX / 8XXX / 9XXX Series
    Form Factor Micro-ATX
    Memory Technology DDR5
    Memory Slots 4 × DIMM
    Maximum Memory 192GB
    Memory Speed Up to 7600+ MT/s (OC)
    PCIe x16 Slots 3 × PCIe x16 (PCIe 4.0 x16 / PCIe 4.0 x1 / PCIe 4.0 x1)
    M.2 Slots 2
    SATA Ports 4 × SATA III
    Wireless Connectivity Wi-Fi 6, Bluetooth 5.2
    LAN 2.5 Gigabit Ethernet
    Video Outputs HDMI, DisplayPort, VGA
    USB USB Type-A, USB Type-C
    Audio 7.1 Channel HD Audio
