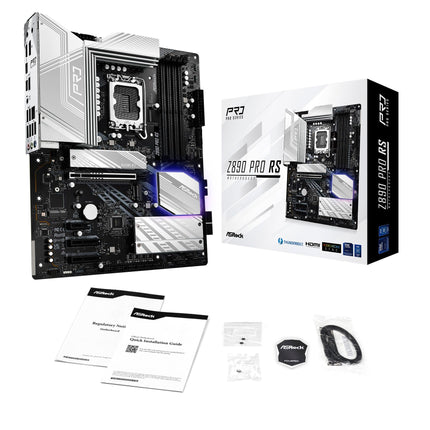

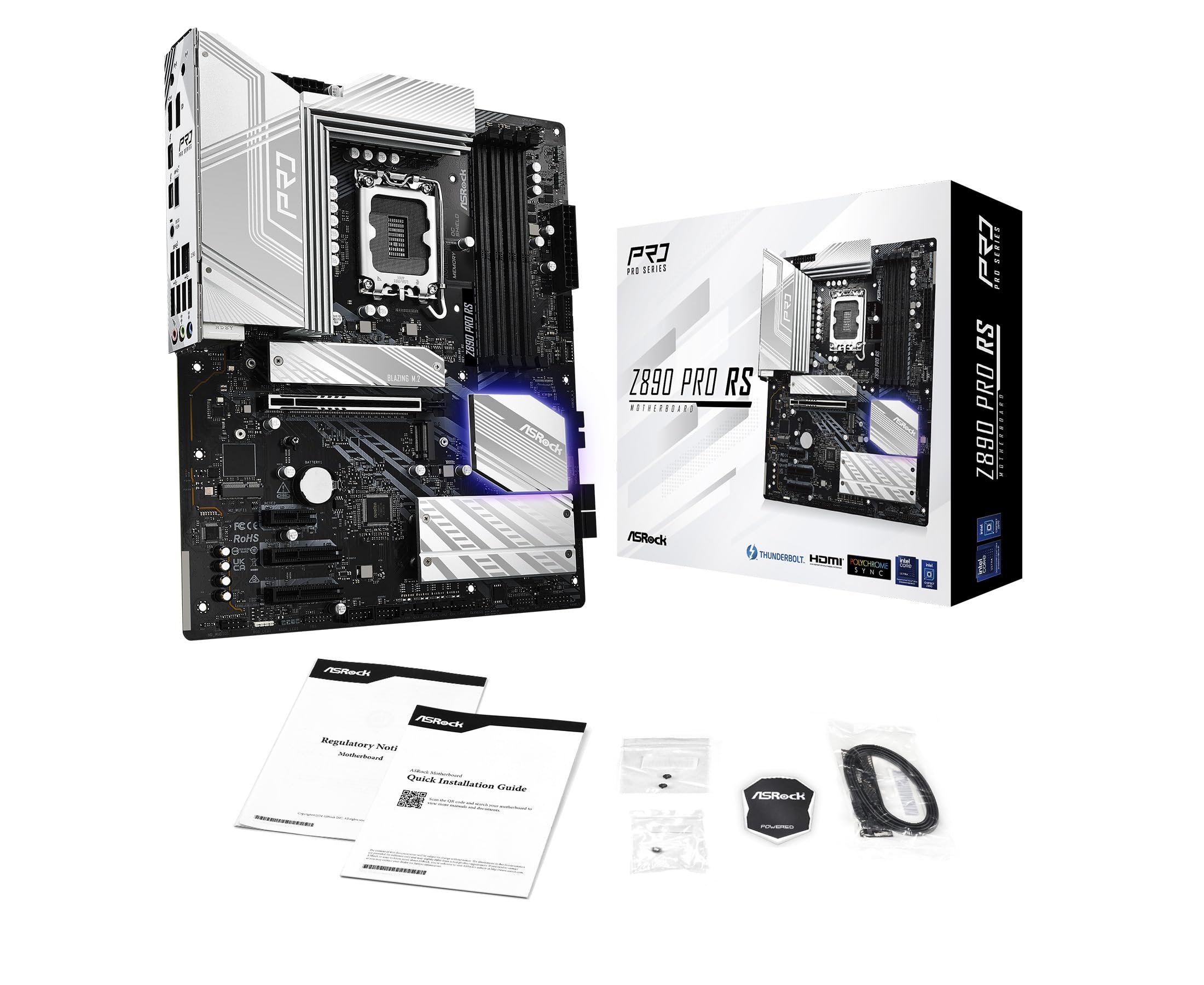

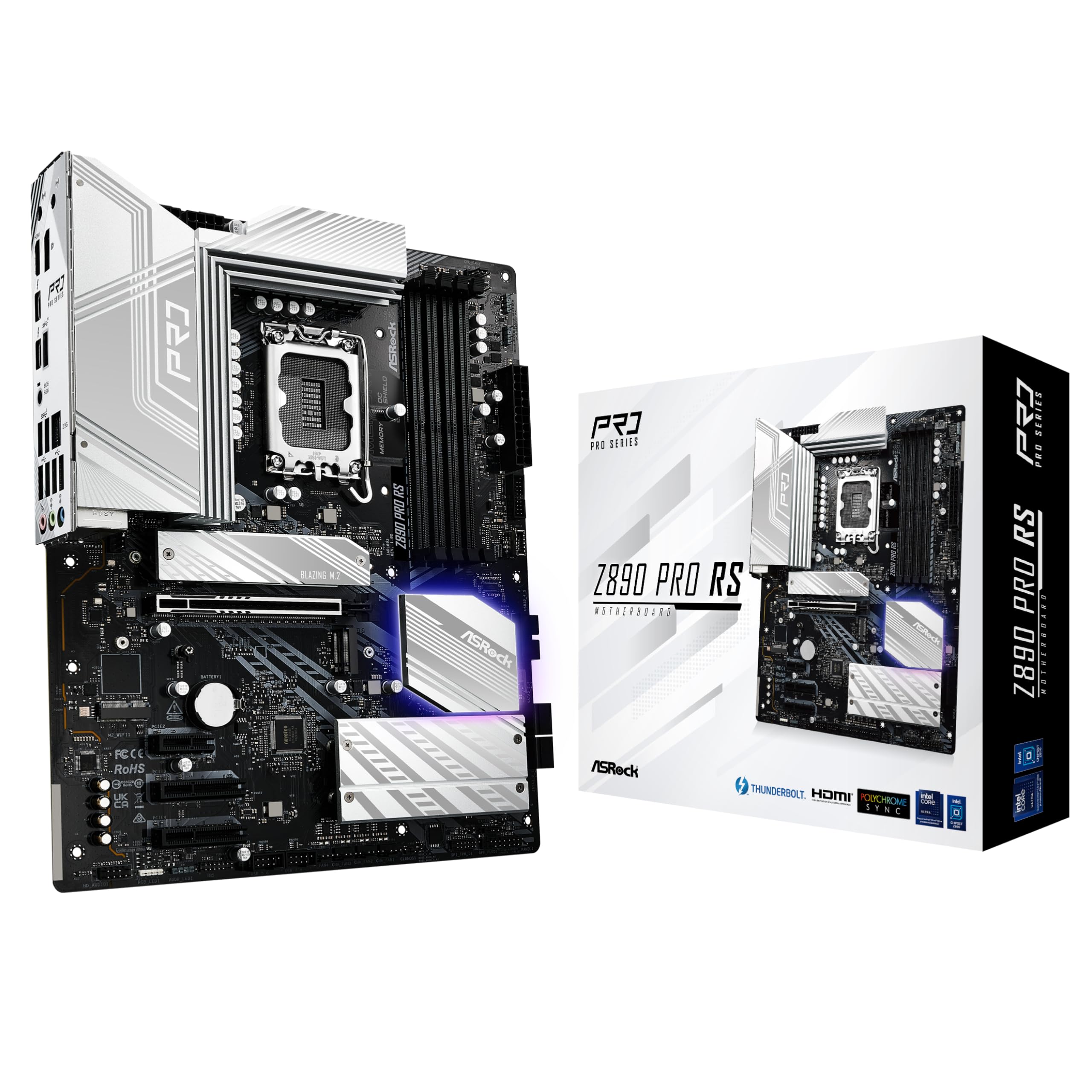

ASRock Z890 Pro RS Z890 LGA 1851 ATX DDR5 PCIe 5.0 Desktop Motherboard

Description

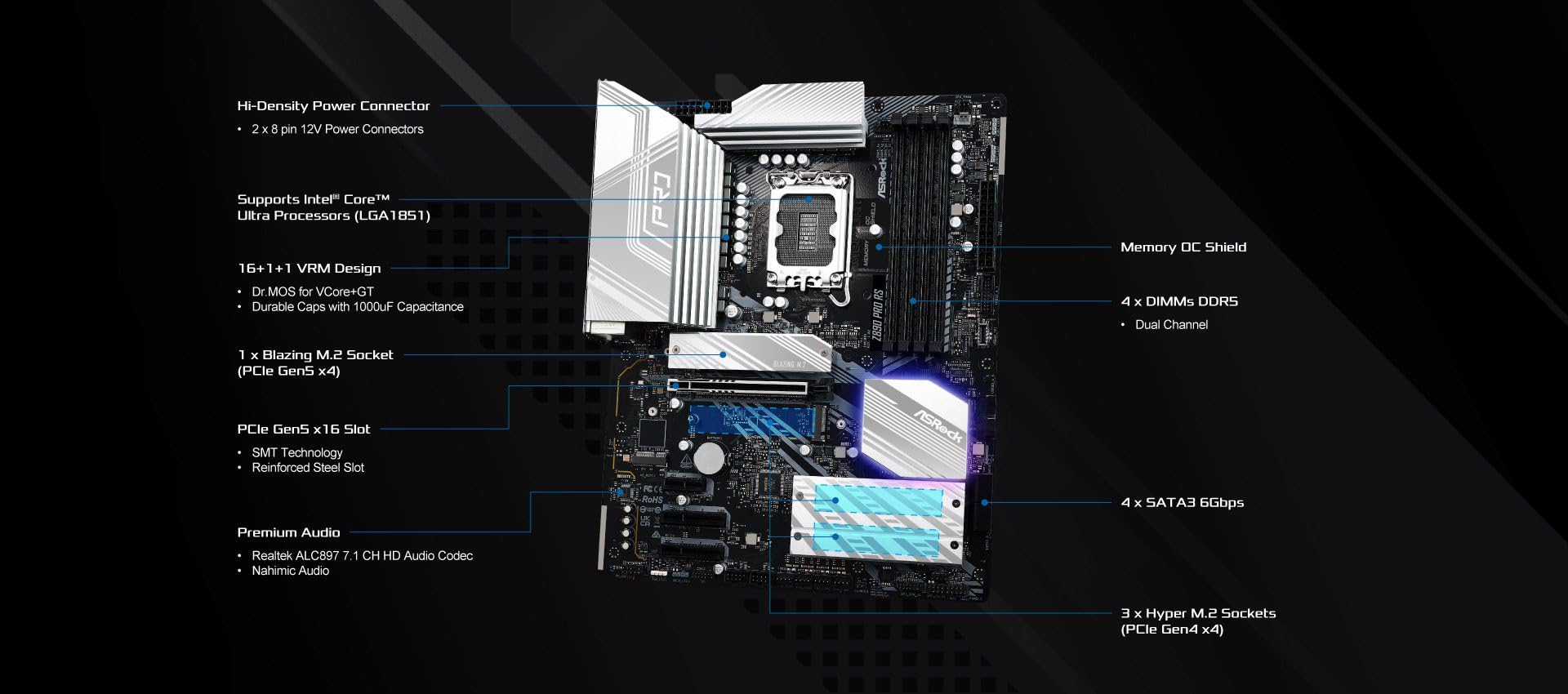

ASRock Z890 Pro RS is an ATX Intel Z890 motherboard for the LGA 1851 platform and Intel Core Ultra Processors Series 2. Four DDR5 DIMM slots support up to 256GB, with ASRock listing memory overclocking up to 9066+ MT/s under suitable configurations. The CPU-connected graphics slot is PCIe 5.0 x16. Two additional long expansion slots are connected through the chipset at PCIe 4.0 x4, while a PCIe 4.0 x1 slot is available for smaller cards.

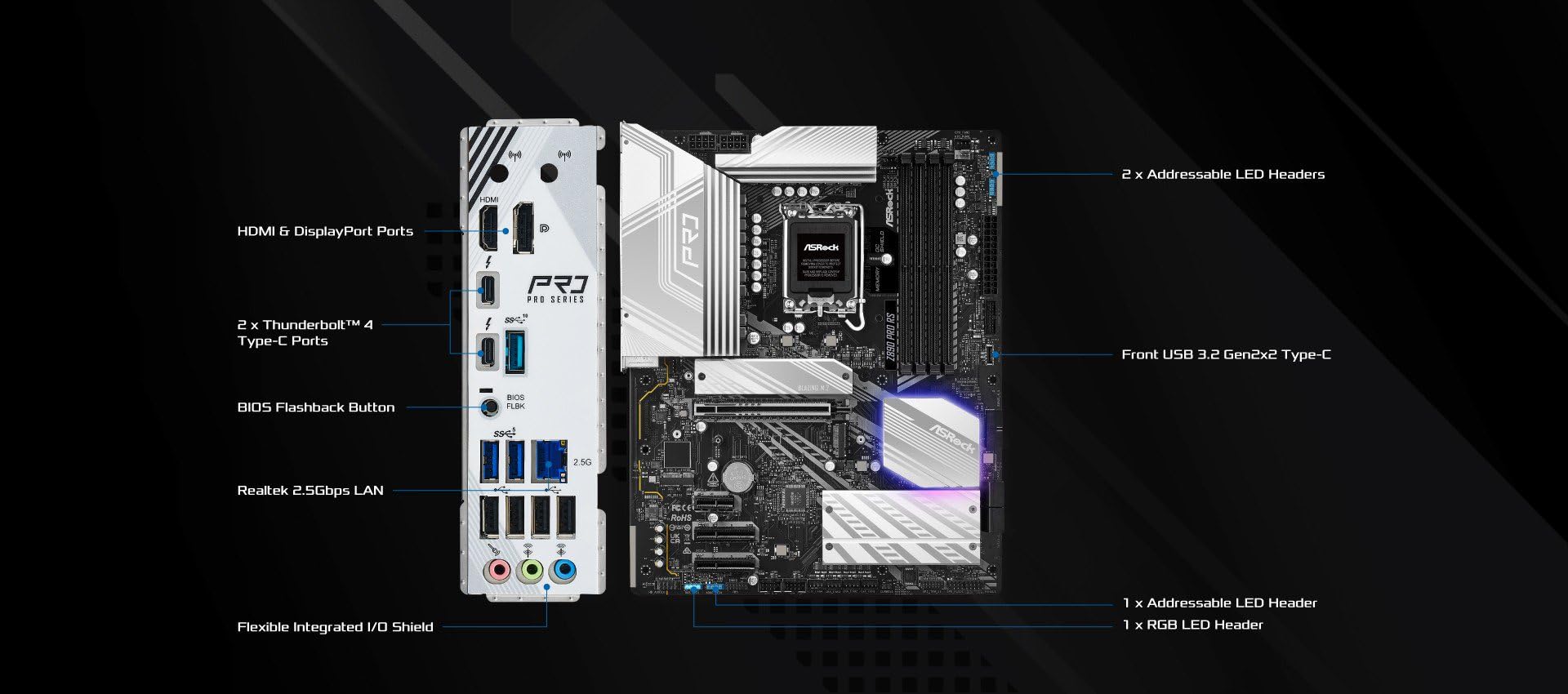

Storage is built around four M.2 sockets and four SATA III ports. One M.2 socket supports PCIe 5.0 x4 and the remaining storage sockets provide PCIe 4.0 connectivity, with one also supporting SATA M.2 drives. Rear I/O includes two Thunderbolt 4/USB4 Type-C ports capable of up to 40Gb/s, along with USB Type-A connectivity. BIOS Flashback is included for firmware maintenance.

This non-Wi-Fi Z890 Pro RS does not include a wireless module or Bluetooth, although an M.2 Key E socket is available for optional Wi-Fi/BT hardware. Wired networking is 2.5 Gigabit Ethernet. Display outputs include HDMI, DisplayPort and Thunderbolt 4 Type-C when used with a processor that provides integrated graphics. Audio is 7.1-channel HD audio using the Realtek ALC897 codec. Do not transfer Wi-Fi 6E specifications from the separate Z890 Pro RS WiFi model.

Brand ASRock
Model Z890 Pro RS
MPN 90-MXBP10-A0UAYZ
Socket LGA 1851
Chipset Intel Z890
Supported Processors Intel Core Ultra Series 2
Form Factor ATX
Memory Technology DDR5
Memory Slots 4 × DIMM
Maximum Memory 256GB
Memory Speed Up to 9066+ MT/s (OC)
PCIe x16 Slots 3 × PCIe x16 (PCIe 5.0 x16 / 2 × PCIe 4.0 x4)
M.2 Slots 4
SATA Ports 4 × SATA III
Wireless Connectivity None
LAN 2.5 Gigabit Ethernet
Video Outputs HDMI, DisplayPort, Thunderbolt 4 Type-C
USB USB Type-A, USB Type-C
Audio 7.1 Channel HD Audio
Product form

Barcode: 4710483947452

ASRock Z890 Pro RS Z890 LGA 1851 ATX DDR5 PCIe 5.0 Desktop Motherboard

ASRock Z890 Pro RS is an ATX Intel Z890 motherboard for the LGA 1851 platform and Intel Core Ultra Processors... Read more

3 in stock Next day delivery

£200.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      klarna
    • Free shipping on all orders above £ 100
    • No hassle returns, 14 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    ASRock Z890 Pro RS is an ATX Intel Z890 motherboard for the LGA 1851 platform and Intel Core Ultra Processors Series 2. Four DDR5 DIMM slots support up to 256GB, with ASRock listing memory overclocking up to 9066+ MT/s under suitable configurations. The CPU-connected graphics slot is PCIe 5.0 x16. Two additional long expansion slots are connected through the chipset at PCIe 4.0 x4, while a PCIe 4.0 x1 slot is available for smaller cards.

    Storage is built around four M.2 sockets and four SATA III ports. One M.2 socket supports PCIe 5.0 x4 and the remaining storage sockets provide PCIe 4.0 connectivity, with one also supporting SATA M.2 drives. Rear I/O includes two Thunderbolt 4/USB4 Type-C ports capable of up to 40Gb/s, along with USB Type-A connectivity. BIOS Flashback is included for firmware maintenance.

    This non-Wi-Fi Z890 Pro RS does not include a wireless module or Bluetooth, although an M.2 Key E socket is available for optional Wi-Fi/BT hardware. Wired networking is 2.5 Gigabit Ethernet. Display outputs include HDMI, DisplayPort and Thunderbolt 4 Type-C when used with a processor that provides integrated graphics. Audio is 7.1-channel HD audio using the Realtek ALC897 codec. Do not transfer Wi-Fi 6E specifications from the separate Z890 Pro RS WiFi model.

    Brand ASRock
    Model Z890 Pro RS
    MPN 90-MXBP10-A0UAYZ
    Socket LGA 1851
    Chipset Intel Z890
    Supported Processors Intel Core Ultra Series 2
    Form Factor ATX
    Memory Technology DDR5
    Memory Slots 4 × DIMM
    Maximum Memory 256GB
    Memory Speed Up to 9066+ MT/s (OC)
    PCIe x16 Slots 3 × PCIe x16 (PCIe 5.0 x16 / 2 × PCIe 4.0 x4)
    M.2 Slots 4
    SATA Ports 4 × SATA III
    Wireless Connectivity None
    LAN 2.5 Gigabit Ethernet
    Video Outputs HDMI, DisplayPort, Thunderbolt 4 Type-C
    USB USB Type-A, USB Type-C
    Audio 7.1 Channel HD Audio
