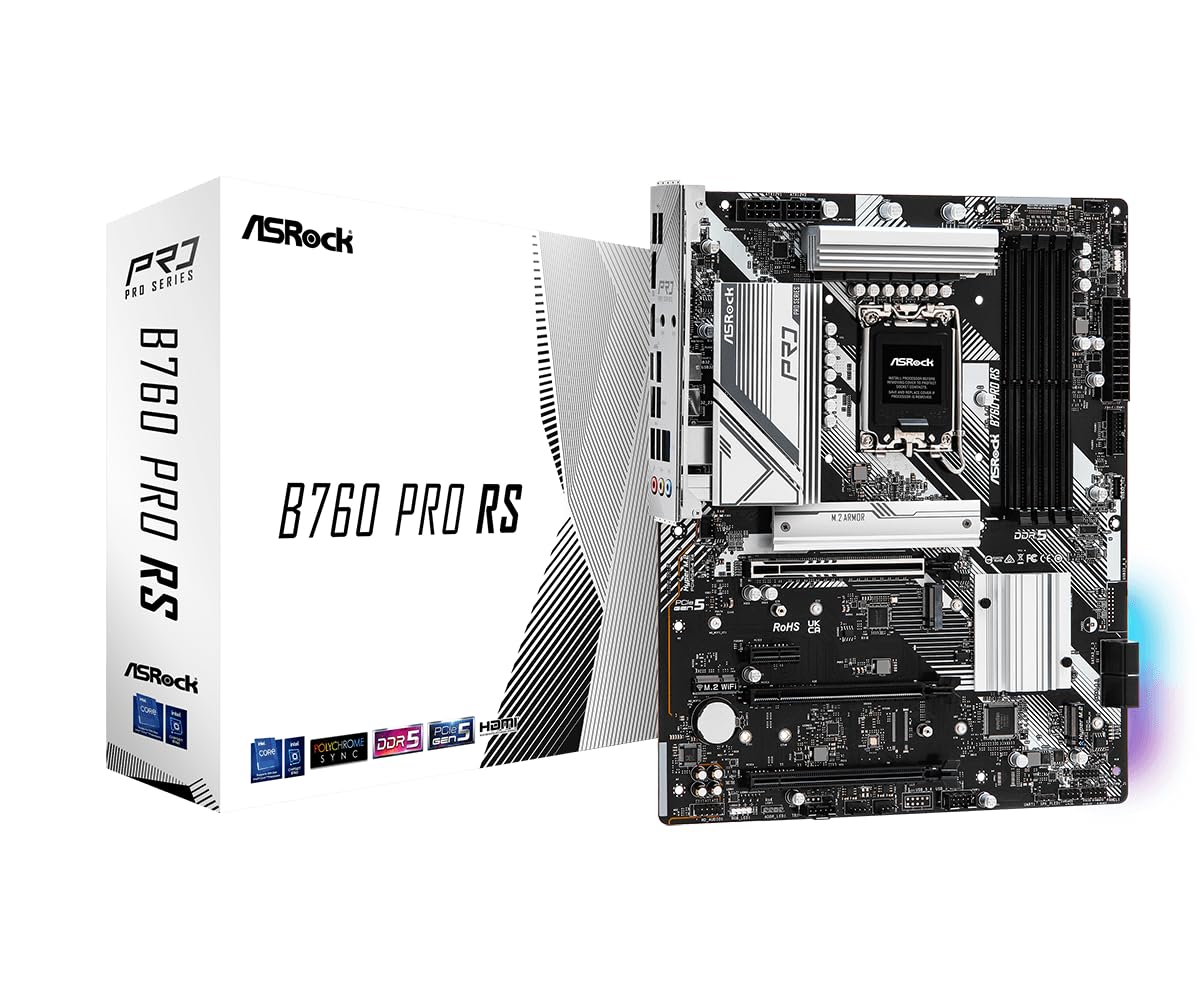

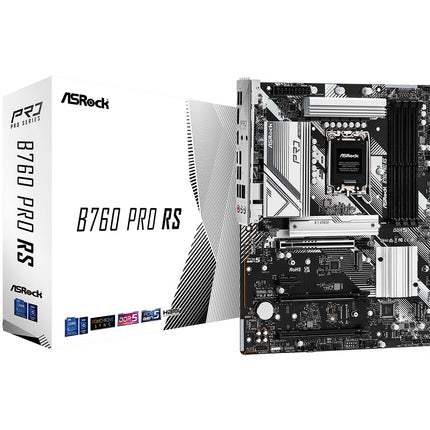

ASRock B760 Pro RS B760 LGA 1700 ATX DDR5 PCIe 5.0 Desktop Motherboard

Description

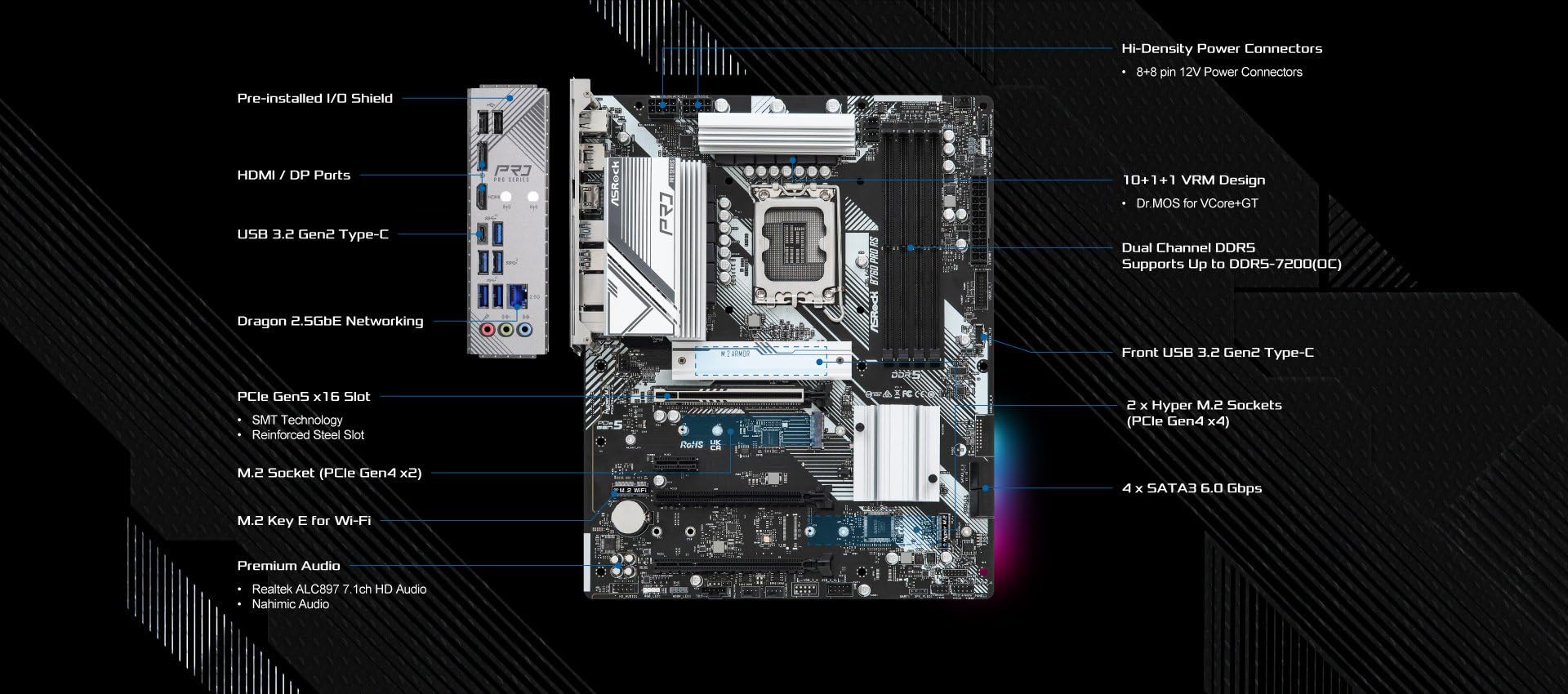

ASRock B760 Pro RS is an ATX Intel B760 motherboard for the LGA 1700 platform, supporting Intel Core 12th, 13th and 14th Gen desktop processors. This exact model uses DDR5 rather than DDR4, with four DIMM slots supporting up to 256GB and ASRock-listed speeds up to 7200+ MT/s when overclocked. The primary graphics slot is PCIe 5.0 x16, providing a full-width CPU-connected path for a discrete graphics card.

Three physical x16-length connectors are present: the main PCIe 5.0 x16 slot, a chipset-connected PCIe 4.0 slot operating at x4 and another long connector operating at PCIe 3.0 x1. Storage includes three M.2 sockets and four SATA III ports. An M.2 Key E socket is available for an optional wireless module; it is not counted as an M.2 storage slot and does not mean Wi-Fi is included.

The B760 Pro RS has no integrated Wi-Fi or Bluetooth. Wired networking is 2.5 Gigabit Ethernet. Rear display outputs include HDMI and DisplayPort for Intel processors with integrated graphics, while USB connectivity includes Type-A and Type-C. Audio is 7.1-channel HD audio and firmware is AMI UEFI. Do not confuse this product with B760 Pro RS/D4 or Wi-Fi variants, because memory technology and wireless hardware differ.

Brand ASRock
Model B760 Pro RS
MPN 90-MXBKS0-A0UAYZ
Socket LGA 1700
Chipset Intel B760

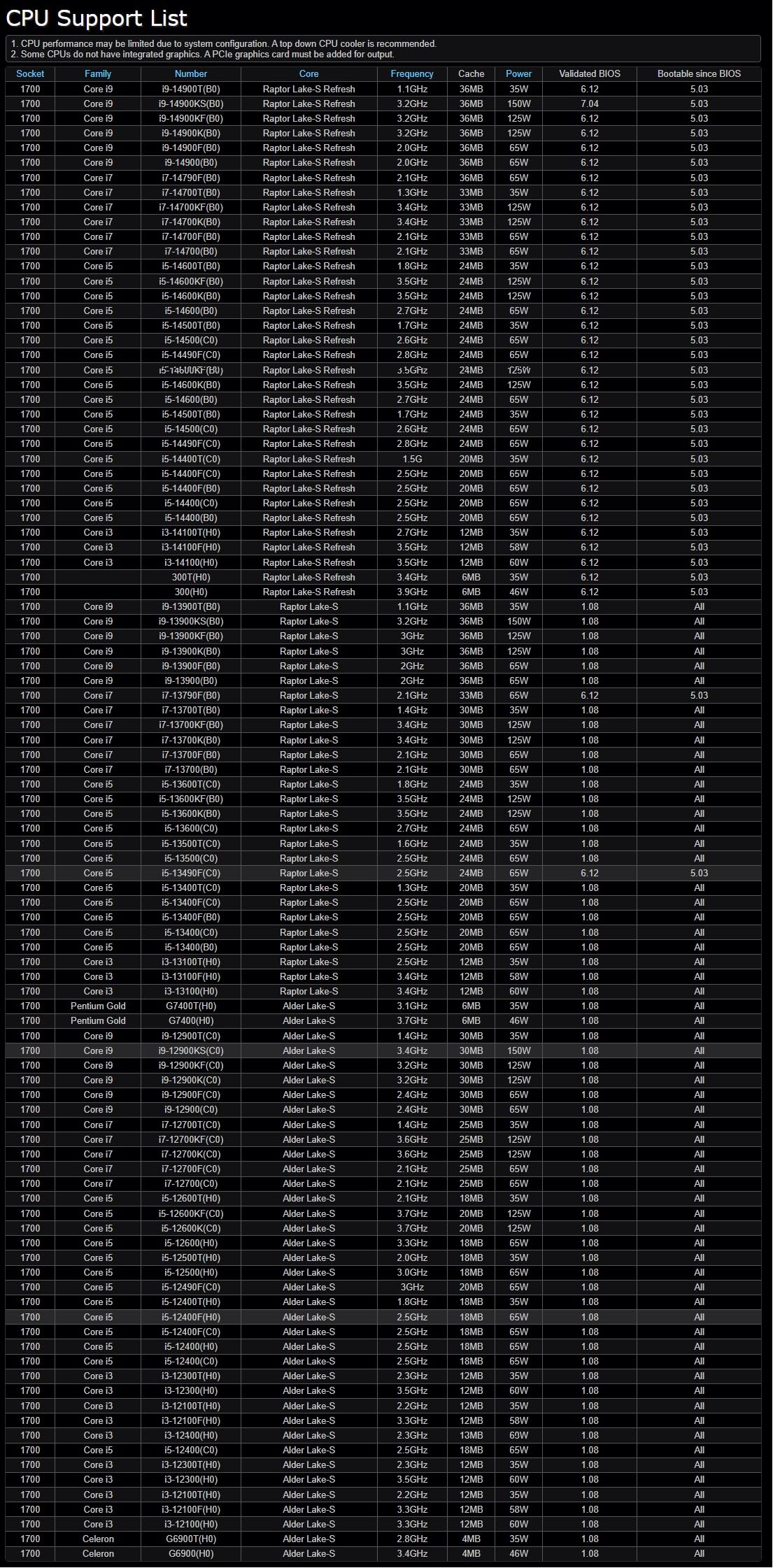

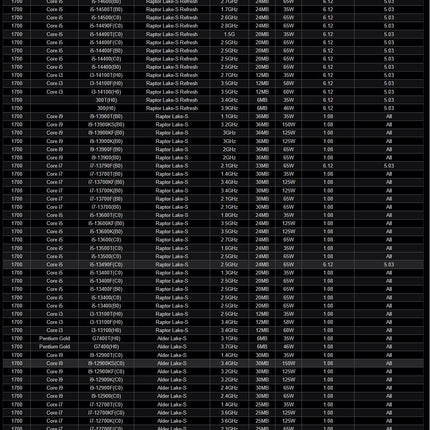

Supported Processors Intel Core 12th / 13th / 14th Gen
Form Factor ATX
Memory Technology DDR5
Memory Slots 4 × DIMM
Maximum Memory 256GB
Memory Speed Up to 7200+ MT/s (OC)
PCIe x16 Slots 3 × PCIe x16 (PCIe 5.0 x16 / PCIe 4.0 x4 / PCIe 3.0 x1)
M.2 Slots 3
SATA Ports 4 × SATA III
Wireless Connectivity None
LAN 2.5 Gigabit Ethernet
Video Outputs HDMI, DisplayPort
USB USB Type-A, USB Type-C
Audio 7.1 Channel HD Audio
Product form

Barcode: 4710483942044

ASRock B760 Pro RS B760 LGA 1700 ATX DDR5 PCIe 5.0 Desktop Motherboard

ASRock B760 Pro RS is an ATX Intel B760 motherboard for the LGA 1700 platform, supporting Intel Core 12th, 13th... Read more

3 in stock Next day delivery

£115.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      klarna
    • Free shipping on all orders above £ 100
    • No hassle returns, 14 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    ASRock B760 Pro RS is an ATX Intel B760 motherboard for the LGA 1700 platform, supporting Intel Core 12th, 13th and 14th Gen desktop processors. This exact model uses DDR5 rather than DDR4, with four DIMM slots supporting up to 256GB and ASRock-listed speeds up to 7200+ MT/s when overclocked. The primary graphics slot is PCIe 5.0 x16, providing a full-width CPU-connected path for a discrete graphics card.

    Three physical x16-length connectors are present: the main PCIe 5.0 x16 slot, a chipset-connected PCIe 4.0 slot operating at x4 and another long connector operating at PCIe 3.0 x1. Storage includes three M.2 sockets and four SATA III ports. An M.2 Key E socket is available for an optional wireless module; it is not counted as an M.2 storage slot and does not mean Wi-Fi is included.

    The B760 Pro RS has no integrated Wi-Fi or Bluetooth. Wired networking is 2.5 Gigabit Ethernet. Rear display outputs include HDMI and DisplayPort for Intel processors with integrated graphics, while USB connectivity includes Type-A and Type-C. Audio is 7.1-channel HD audio and firmware is AMI UEFI. Do not confuse this product with B760 Pro RS/D4 or Wi-Fi variants, because memory technology and wireless hardware differ.

    Brand ASRock
    Model B760 Pro RS
    MPN 90-MXBKS0-A0UAYZ
    Socket LGA 1700
    Chipset Intel B760
    Supported Processors Intel Core 12th / 13th / 14th Gen
    Form Factor ATX
    Memory Technology DDR5
    Memory Slots 4 × DIMM
    Maximum Memory 256GB
    Memory Speed Up to 7200+ MT/s (OC)
    PCIe x16 Slots 3 × PCIe x16 (PCIe 5.0 x16 / PCIe 4.0 x4 / PCIe 3.0 x1)
    M.2 Slots 3
    SATA Ports 4 × SATA III
    Wireless Connectivity None
    LAN 2.5 Gigabit Ethernet
    Video Outputs HDMI, DisplayPort
    USB USB Type-A, USB Type-C
    Audio 7.1 Channel HD Audio
