ASRock B860M-H2 Intel B860 LGA1851 DDR5 Micro-ATX Motherboard Core Ultra

Description

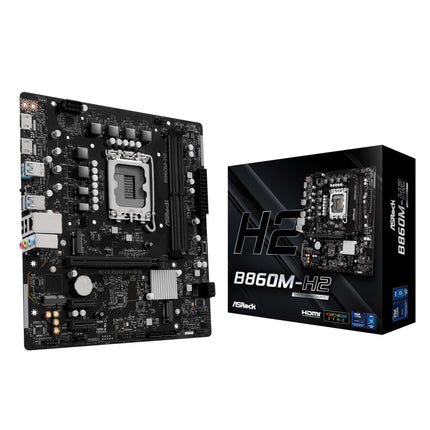

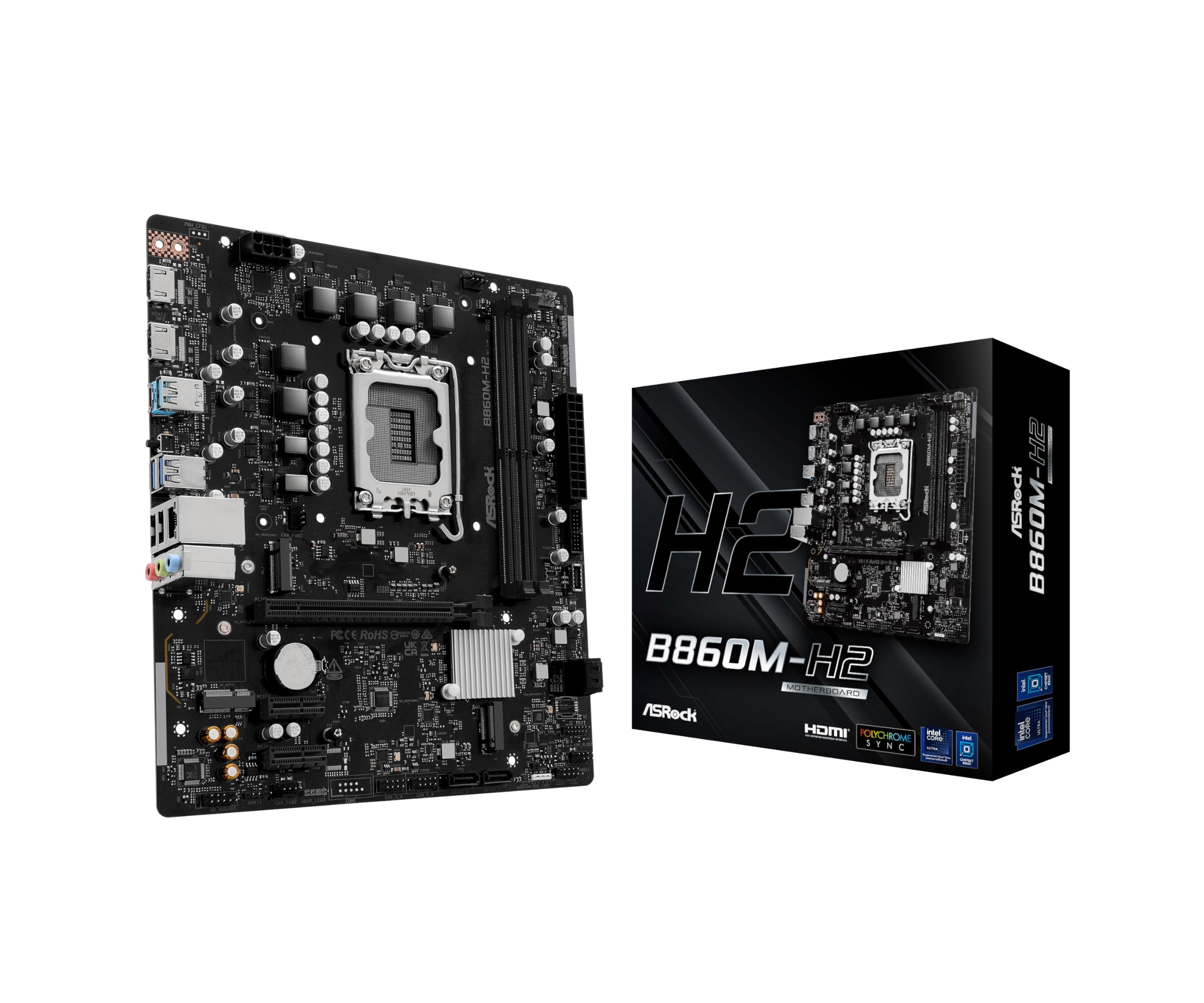

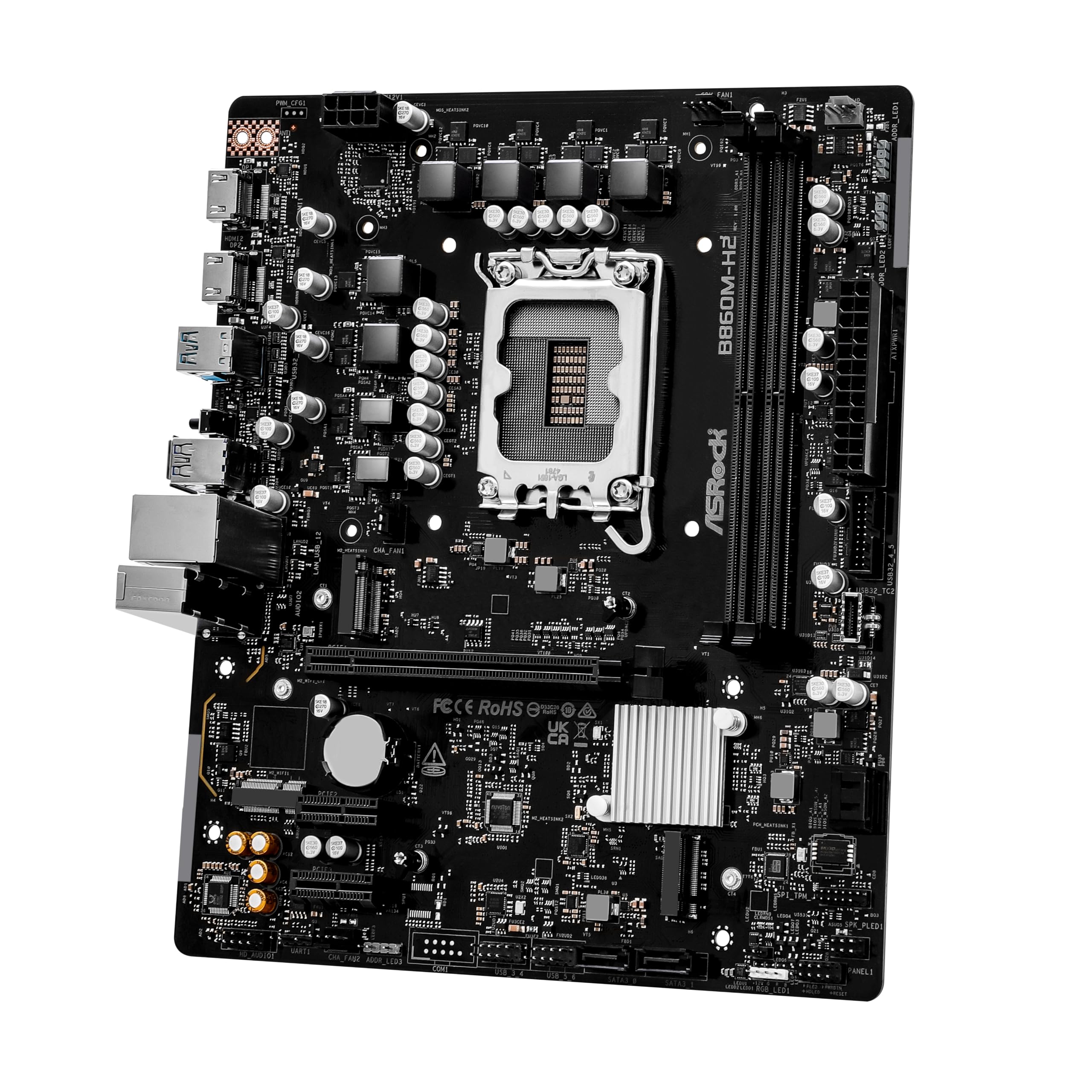

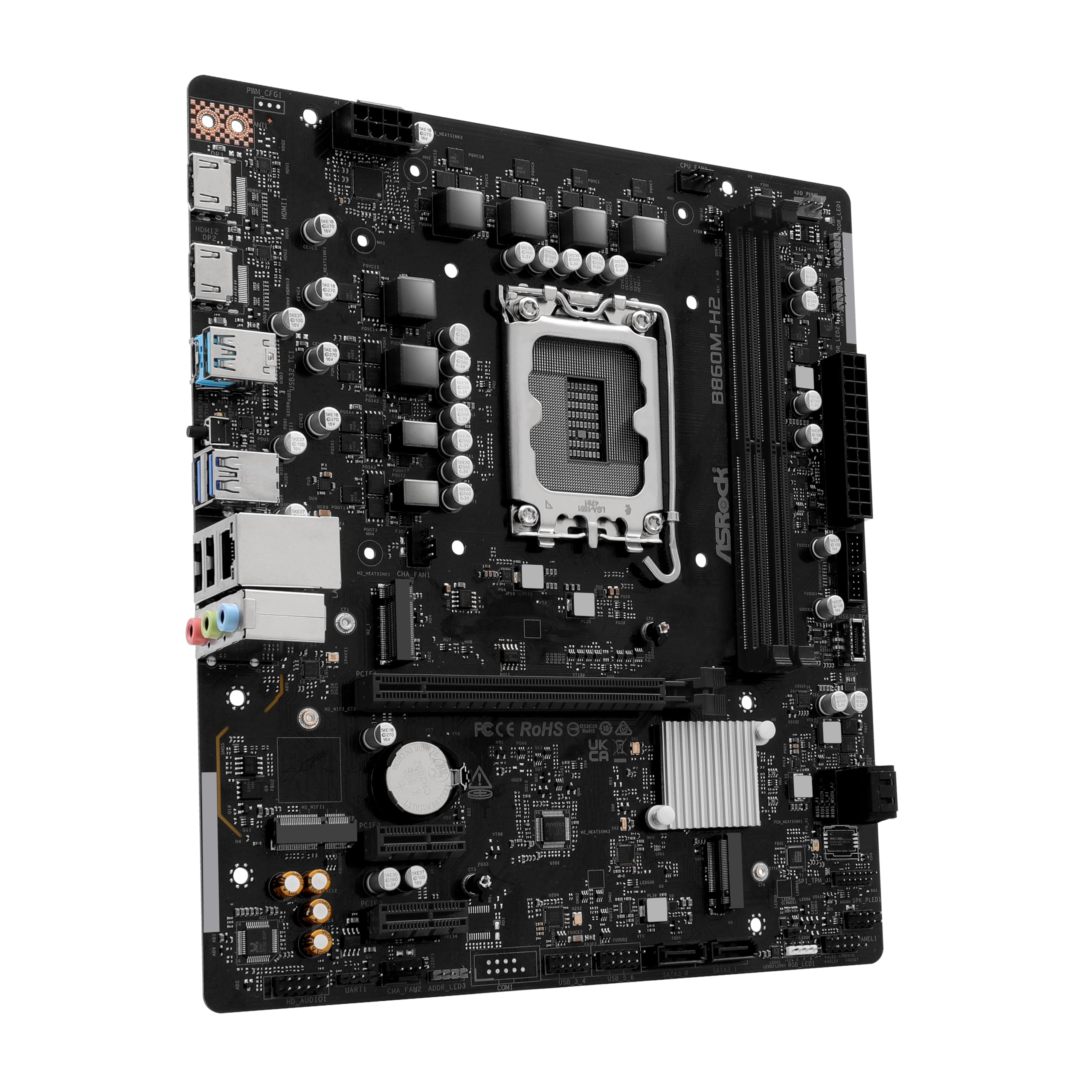

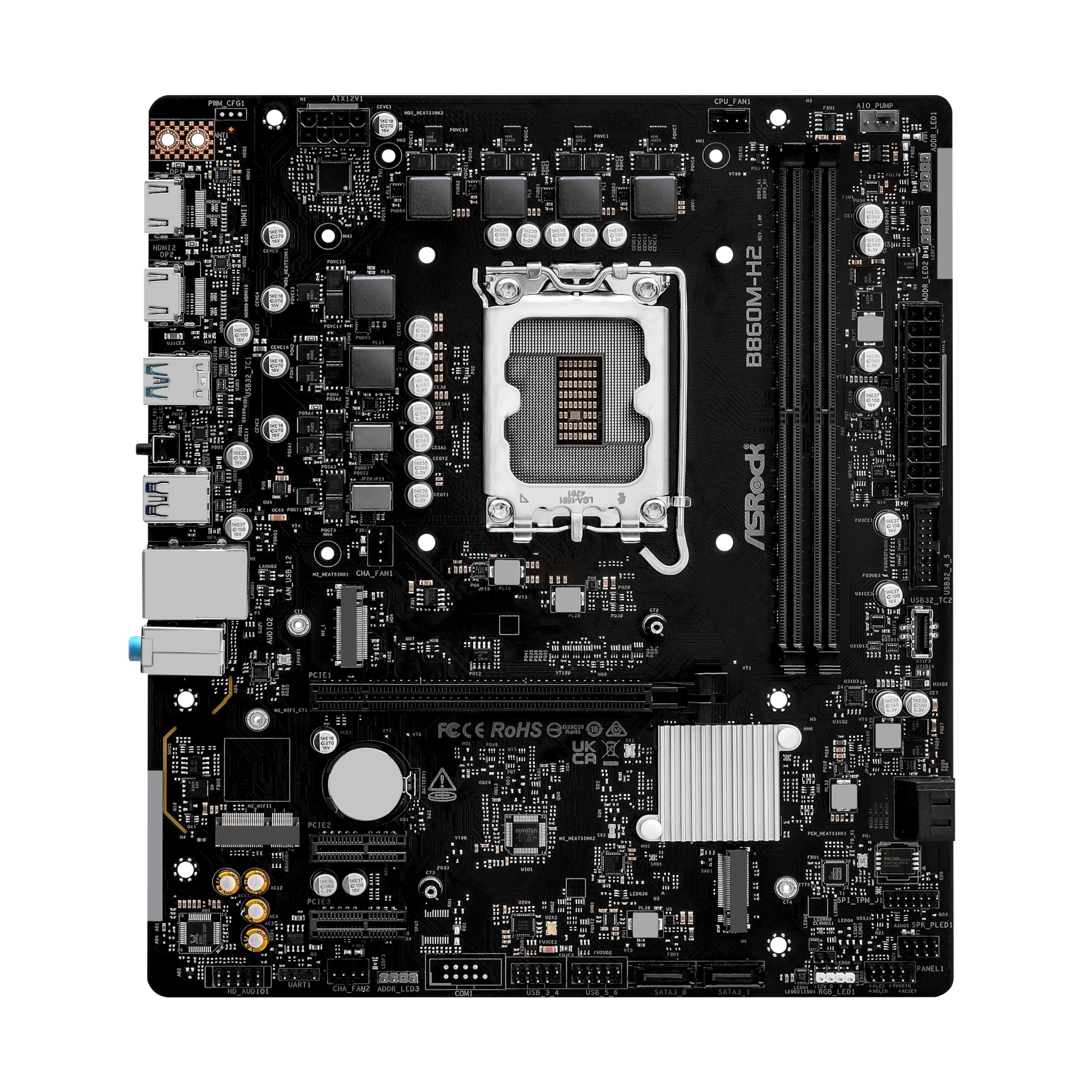

The ASRock B860M-H2 is a compact Micro-ATX motherboard built around the Intel B860 chipset and LGA1851 socket for Intel Core Ultra Series 2 processors. It uses dual-channel DDR5 memory with two DIMM slots, supporting up to 128GB and speeds up to 8333+ MT/s (OC), giving modern desktop builds a current-generation memory platform in a space-efficient board.

Expansion is centred on one full-length PCIe 4.0 x16 slot for a graphics card, alongside two PCIe 4.0 x1 slots. Storage options include one PCIe Gen5 x4 Blazing M.2 socket, one PCIe Gen4 x4 Hyper M.2 socket and four SATA III connectors, allowing a practical mix of high-speed NVMe storage and conventional SATA drives. Dual HDMI 2.1 outputs are available when used with a processor featuring integrated graphics.

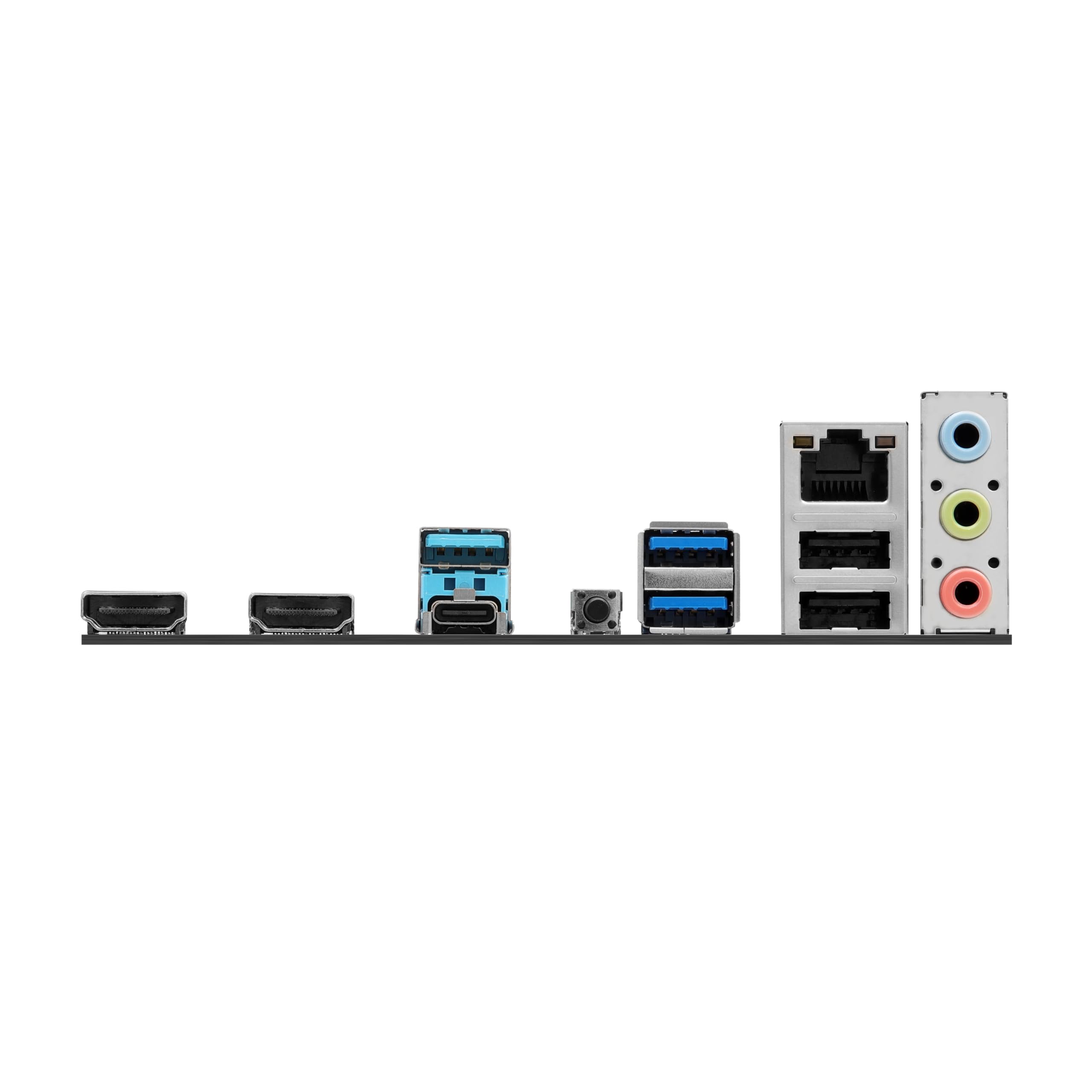

Connectivity includes rear USB 3.2 Gen2x2 Type-C up to 20Gbps, front USB 3.2 Gen1 Type-C support, additional USB Type-A ports and Realtek Gigabit Ethernet. The Realtek ALC897 codec provides 7.1-channel HD audio, while BIOS Flashback allows firmware updates without a CPU or memory installed. The board does not include onboard Wi-Fi or Bluetooth, but an M.2 Key E slot and antenna mounting points allow an optional wireless module to be added.

Brand ASRock
Model B860M-H2
MPN 90-MXBS00-A0UAYZ
Socket LGA 1851
Chipset Intel B860
Supported Processors Intel Core Ultra Series 2
Form Factor Micro-ATX
Memory Technology DDR5
Memory Slots 2 × DIMM
Maximum Memory 128GB
Memory Speed Up to 8333+ MT/s (OC)
PCIe x16 Slots 1 × PCIe x16 (PCIe 4.0 x16)
M.2 Slots 2
SATA Ports 4 × SATA III
Wireless Connectivity None
LAN 1 Gigabit Ethernet
Video Outputs 2 × HDMI 2.1
USB USB Type-A, USB Type-C
Audio 7.1 Channel HD Audio
Product form

Barcode: 4711581490437

ASRock B860M-H2 Intel B860 LGA1851 DDR5 Micro-ATX Motherboard Core Ultra

The ASRock B860M-H2 is a compact Micro-ATX motherboard built around the Intel B860 chipset and LGA1851 socket for Intel Core... Read more

3 in stock Next day delivery

£85.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      klarna
    • Free shipping on all orders above £ 100
    • No hassle returns, 14 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    The ASRock B860M-H2 is a compact Micro-ATX motherboard built around the Intel B860 chipset and LGA1851 socket for Intel Core Ultra Series 2 processors. It uses dual-channel DDR5 memory with two DIMM slots, supporting up to 128GB and speeds up to 8333+ MT/s (OC), giving modern desktop builds a current-generation memory platform in a space-efficient board.

    Expansion is centred on one full-length PCIe 4.0 x16 slot for a graphics card, alongside two PCIe 4.0 x1 slots. Storage options include one PCIe Gen5 x4 Blazing M.2 socket, one PCIe Gen4 x4 Hyper M.2 socket and four SATA III connectors, allowing a practical mix of high-speed NVMe storage and conventional SATA drives. Dual HDMI 2.1 outputs are available when used with a processor featuring integrated graphics.

    Connectivity includes rear USB 3.2 Gen2x2 Type-C up to 20Gbps, front USB 3.2 Gen1 Type-C support, additional USB Type-A ports and Realtek Gigabit Ethernet. The Realtek ALC897 codec provides 7.1-channel HD audio, while BIOS Flashback allows firmware updates without a CPU or memory installed. The board does not include onboard Wi-Fi or Bluetooth, but an M.2 Key E slot and antenna mounting points allow an optional wireless module to be added.

    Brand ASRock
    Model B860M-H2
    MPN 90-MXBS00-A0UAYZ
    Socket LGA 1851
    Chipset Intel B860
    Supported Processors Intel Core Ultra Series 2
    Form Factor Micro-ATX
    Memory Technology DDR5
    Memory Slots 2 × DIMM
    Maximum Memory 128GB
    Memory Speed Up to 8333+ MT/s (OC)
    PCIe x16 Slots 1 × PCIe x16 (PCIe 4.0 x16)
    M.2 Slots 2
    SATA Ports 4 × SATA III
    Wireless Connectivity None
    LAN 1 Gigabit Ethernet
    Video Outputs 2 × HDMI 2.1
    USB USB Type-A, USB Type-C
    Audio 7.1 Channel HD Audio
