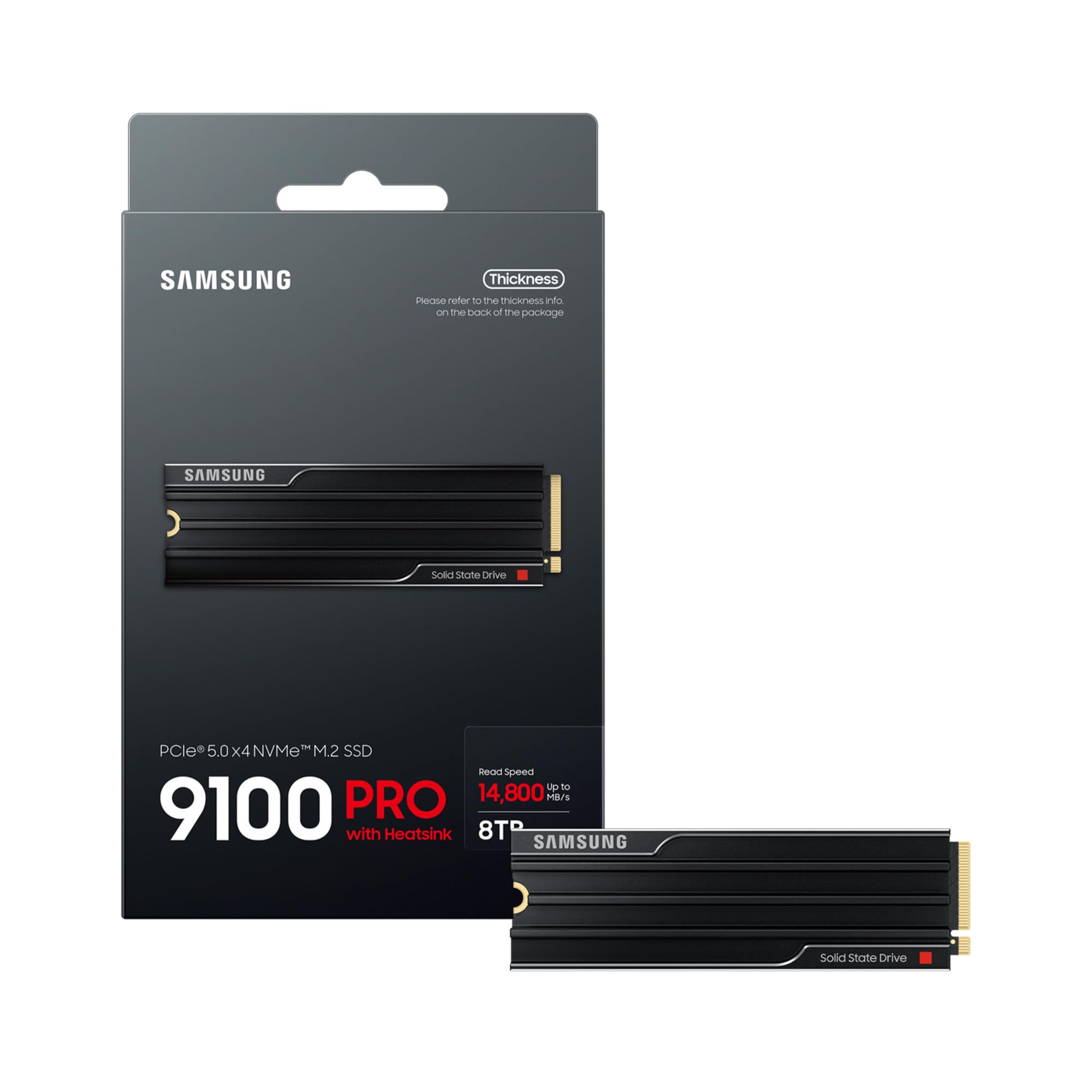

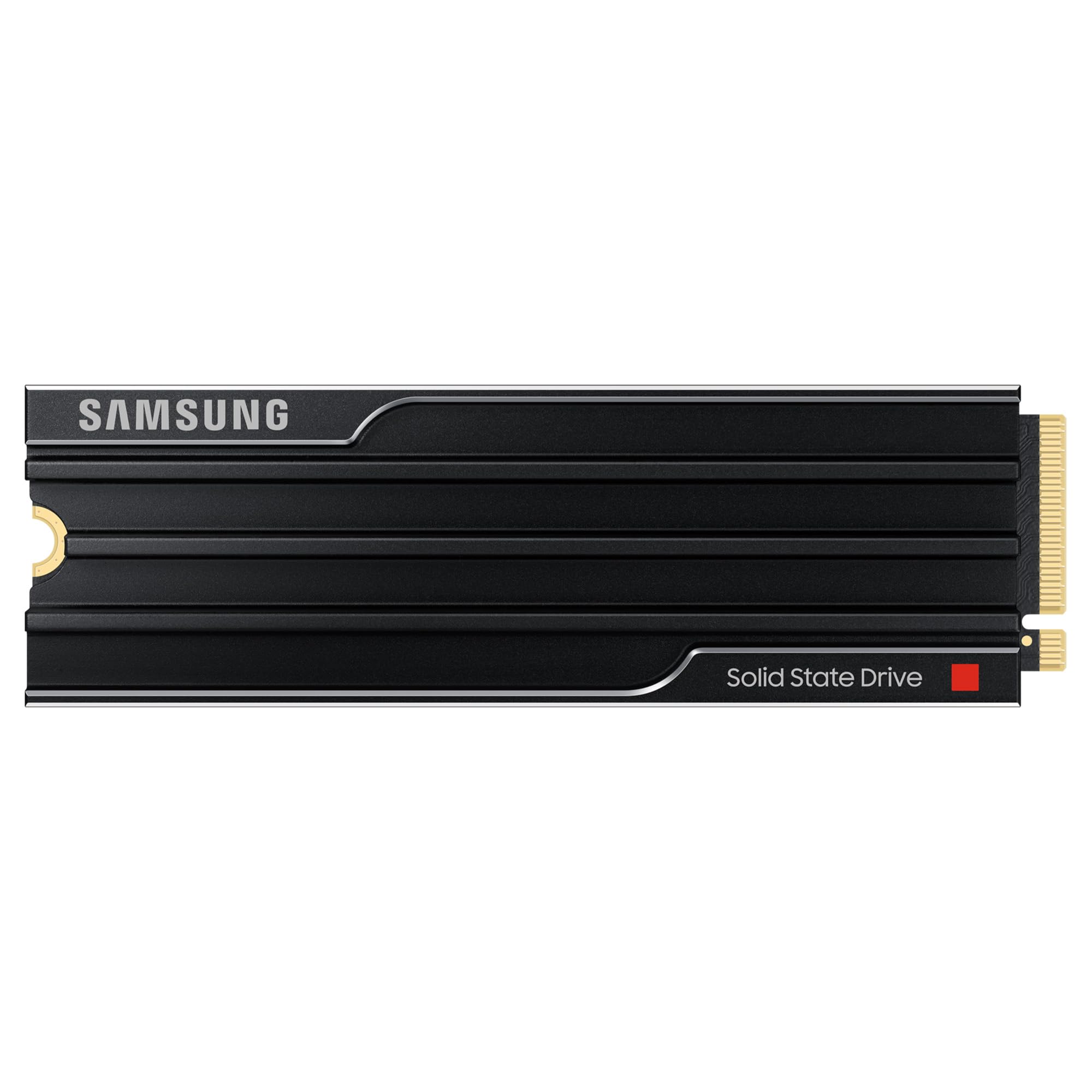

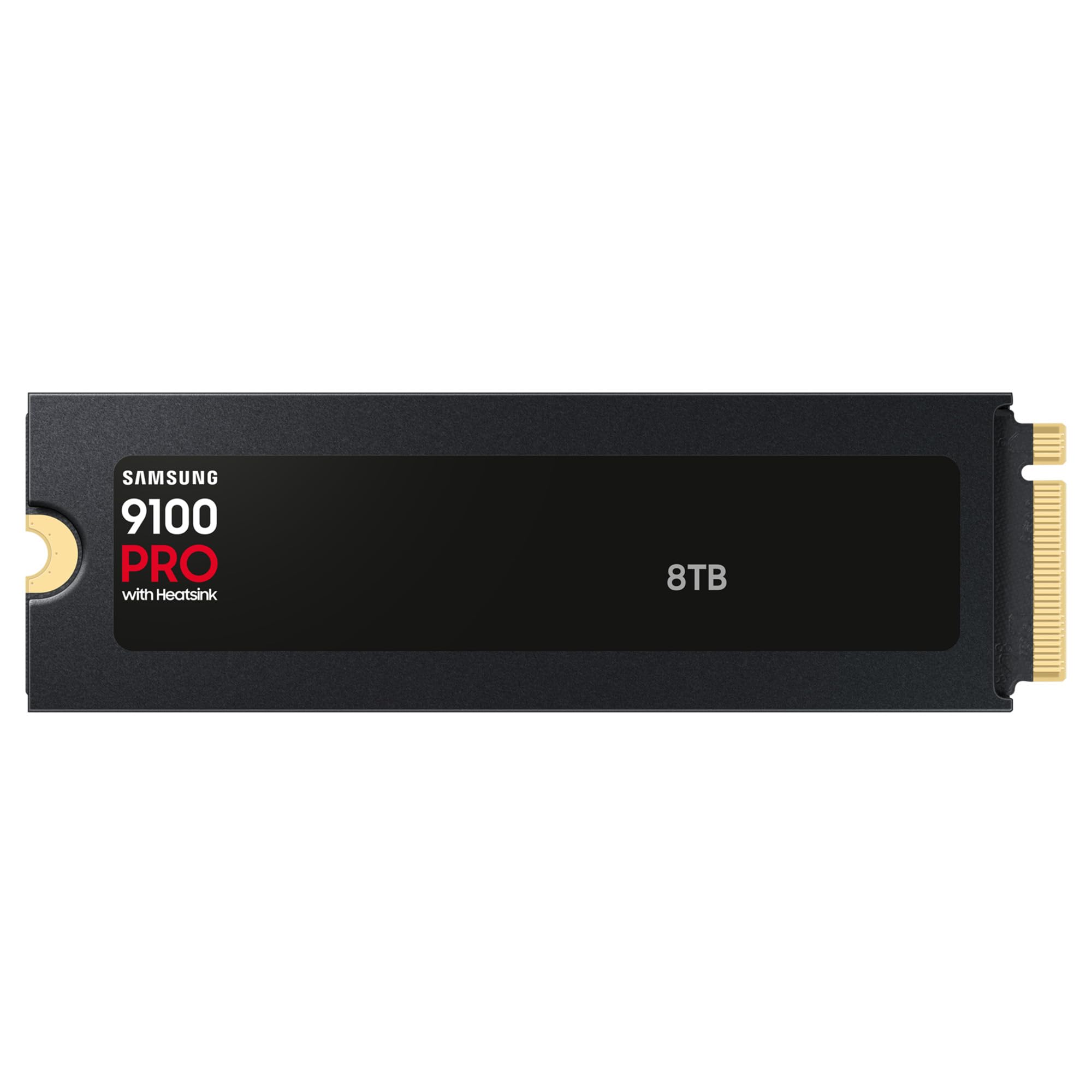

Samsung 9100 PRO 8TB M.2 2280 NVMe SSD PCIe 5.0 x4 With Built-In Heatsink

Description

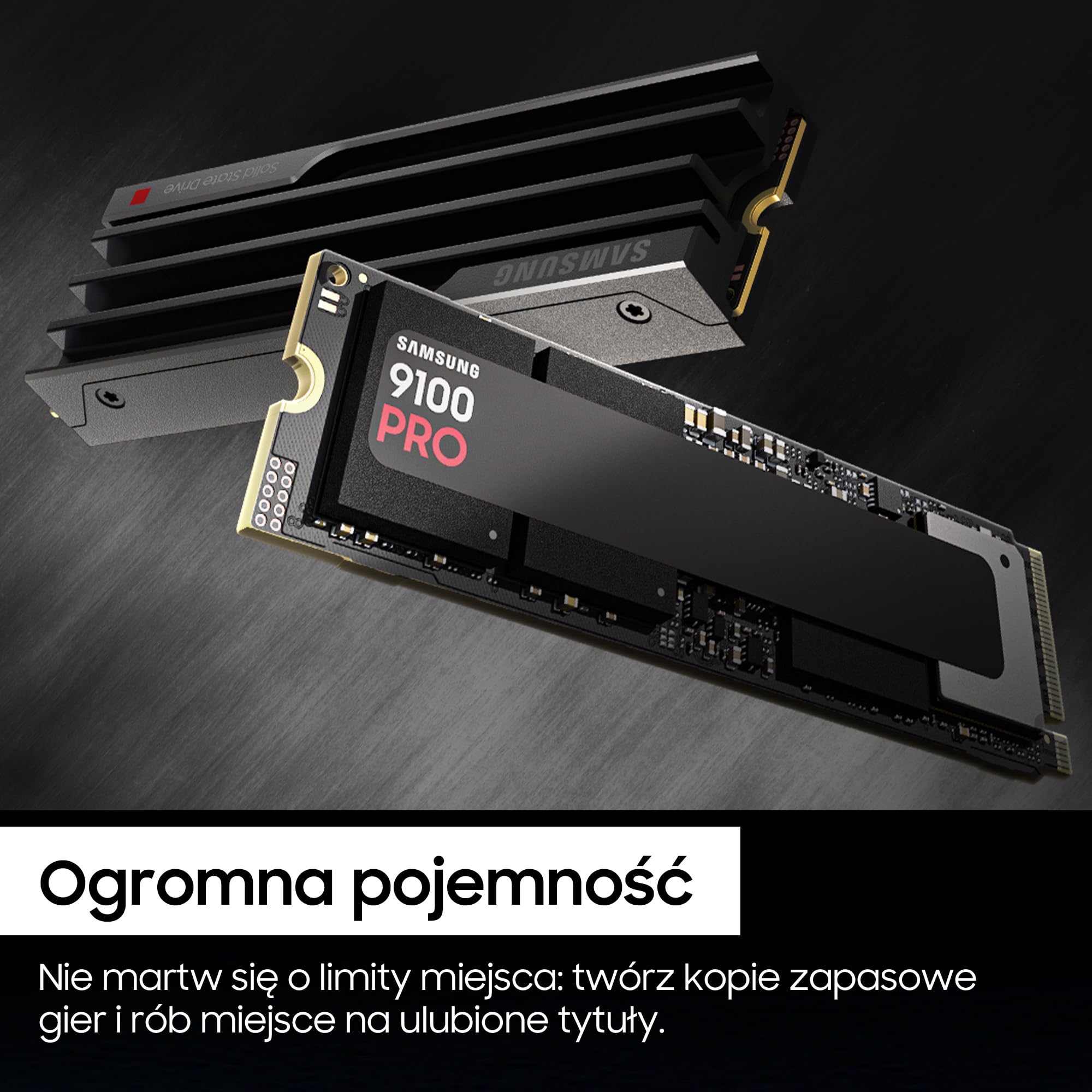

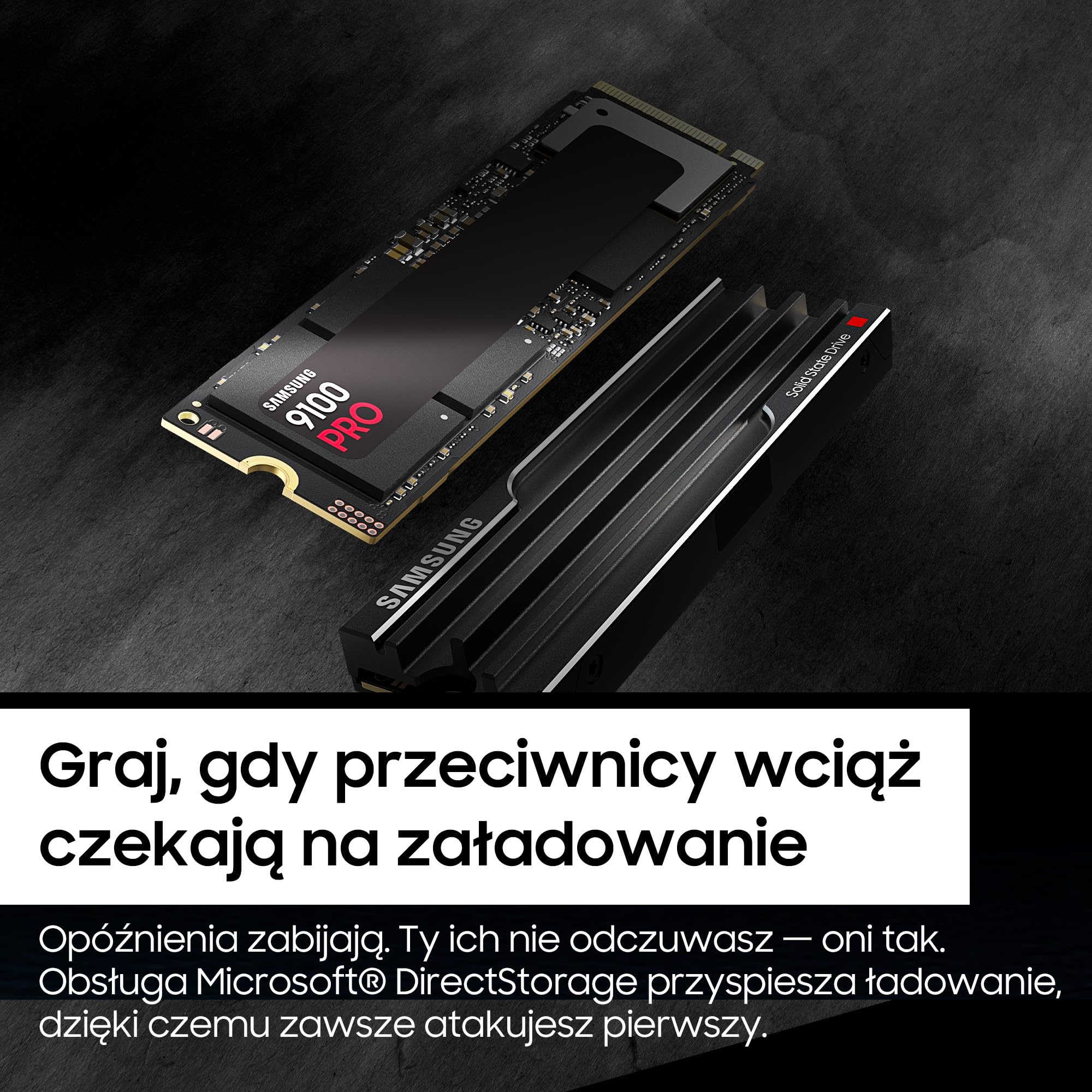

The Samsung 9100 PRO 8TB with heatsink is a high-capacity internal M.2 2280 NVMe SSD for compatible systems that can accommodate its integrated cooling assembly. It combines PCIe 5.0 x4 connectivity and NVMe 2.0 with 8TB of storage, allowing large game collections, demanding creative projects and substantial working files to remain on one high-performance drive.

Sequential read performance reaches up to 14,800 MB/s, with writes up to 13,400 MB/s for this exact 8TB version. Random speeds are rated up to 2,200,000 read IOPS and 2,600,000 write IOPS. Samsung V-NAND TLC, a dedicated 8GB LPDDR4X DRAM cache and a 4,800 TBW endurance rating complement the high transfer rates. The factory-fitted heatsink helps manage the heat generated during sustained workloads.

Samsung Magician software provides SSD health monitoring, optimisation and firmware management. Before ordering, check M.2 2280 support and physical clearance for the fitted heatsink, especially in compact PCs and consoles. A suitable PCIe 5.0 host is needed to approach the stated maximum speeds; achievable performance will also depend on cooling, system configuration and workload. Unlike the bare 9100 PRO, this SKU includes its own heatsink.

Brand Samsung
Model MZ-VAP8T0CW
Capacity 8TB
Drive Type Internal NVMe SSD
Form Factor M.2 2280
PCIe Interface PCIe 5.0 x4
NVMe Version NVMe 2.0
Max Sequential Read Speed Up to 14,800 MB/s
Max Sequential Write Speed Up to 13,400 MB/s
Random Read Speed / IOPS Up to 2,200,000 IOPS
Random Write Speed / IOPS Up to 2,600,000 IOPS
NAND Type Samsung V-NAND TLC
DRAM Cache / HMB 8GB LPDDR4X DRAM
Endurance / TBW 4,800 TBW
Heat Sink Yes
Samsung 9100 PRO 8TB M.2 2280 NVMe SSD PCIe 5.0 x4 With Built-In Heatsink
Product form

The Samsung 9100 PRO 8TB with heatsink is a high-capacity internal M.2 2280 NVMe SSD for compatible systems that can... Read more

Out of stock, 1-3 weeks

£2,100.00  £1,340.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      klarna
    • Free shipping on all orders above £ 100
    • No hassle returns, 14 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Barcode: 8806095811642

    Description

    The Samsung 9100 PRO 8TB with heatsink is a high-capacity internal M.2 2280 NVMe SSD for compatible systems that can accommodate its integrated cooling assembly. It combines PCIe 5.0 x4 connectivity and NVMe 2.0 with 8TB of storage, allowing large game collections, demanding creative projects and substantial working files to remain on one high-performance drive.

    Sequential read performance reaches up to 14,800 MB/s, with writes up to 13,400 MB/s for this exact 8TB version. Random speeds are rated up to 2,200,000 read IOPS and 2,600,000 write IOPS. Samsung V-NAND TLC, a dedicated 8GB LPDDR4X DRAM cache and a 4,800 TBW endurance rating complement the high transfer rates. The factory-fitted heatsink helps manage the heat generated during sustained workloads.

    Samsung Magician software provides SSD health monitoring, optimisation and firmware management. Before ordering, check M.2 2280 support and physical clearance for the fitted heatsink, especially in compact PCs and consoles. A suitable PCIe 5.0 host is needed to approach the stated maximum speeds; achievable performance will also depend on cooling, system configuration and workload. Unlike the bare 9100 PRO, this SKU includes its own heatsink.

    Brand Samsung
    Model MZ-VAP8T0CW
    Capacity 8TB
    Drive Type Internal NVMe SSD
    Form Factor M.2 2280
    PCIe Interface PCIe 5.0 x4
    NVMe Version NVMe 2.0
    Max Sequential Read Speed Up to 14,800 MB/s
    Max Sequential Write Speed Up to 13,400 MB/s
    Random Read Speed / IOPS Up to 2,200,000 IOPS
    Random Write Speed / IOPS Up to 2,600,000 IOPS
    NAND Type Samsung V-NAND TLC
    DRAM Cache / HMB 8GB LPDDR4X DRAM
    Endurance / TBW 4,800 TBW
    Heat Sink Yes
