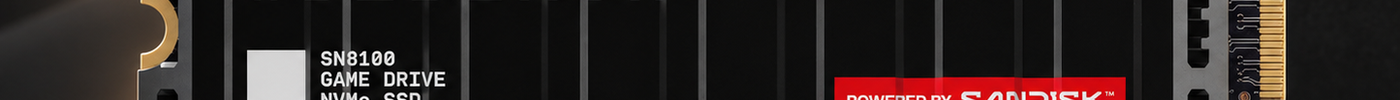

WD Black SN8100 Review: A Serious PCIe 5.0 Upgrade for High-End PCs

• 26 min reading time

PCIe 5.0 SSDs have spent a few years looking spectacular in benchmark charts while being harder to justify inside a normal gaming PC. Early drives were fast, hot and expensive, and the cooling hardware around them often looked more like a warning label than a feature. The WD Black SN8100 is interesting because it makes Gen5 storage feel more mature rather than merely faster.

The 2TB version is the one that best shows what this platform can do. It is rated for up to 14,900 MB/s sequential reads, 14,000 MB/s writes, 2.3 million random-read IOPS and 2.4 million random-write IOPS. It also carries a 1,200 TBW endurance rating and a five-year limited warranty. On paper, that puts it almost a full interface generation ahead of the WD Black SN850X 2TB while keeping the same endurance figure.

There is one naming detail worth knowing before shopping. SanDisk has moved its high-end consumer SSD portfolio away from the WD_BLACK brand, and the 8100 performance tier now appears under the SANDISK Optimus GX PRO 8100 name. Retail listings and older stock may still use WD Black SN8100, so both names can appear when comparing prices or support pages.

WD Black SN8100 specifications at a glance

The SN8100 range now spans 1TB to 8TB. The 2TB and 4TB models carry the strongest headline performance, while the 1TB version gives up some write speed and random-read throughput. The 8TB model trades a little write performance for capacity.

All figures are manufacturer-rated maximums. Actual performance can vary depending on platform, firmware, cooling, available free space and workload.

Why the SN8100 feels like a real Gen5 generation

The architecture is more interesting than the raw bandwidth figure. The drive uses a Silicon Motion SM2508-based controller customized for SanDisk, paired with eighth-generation BiCS8 TLC 3D CBA NAND. On the 2TB model, a 2GB DDR4 DRAM buffer is used for mapping data and controller housekeeping rather than relying on a DRAM-less design.

The controller is built on a 6nm process, which helps explain why the SN8100 is much less wasteful than the first wave of PCIe 5.0 SSDs. That matters in a high-end desktop because M.2 slots are often tucked between a large GPU, chipset heatsinks and other heat sources. It matters even more in laptops that expose a Gen5 M.2 slot but have far less thermal headroom.

This combination also gives the SN8100 a more useful character than a drive tuned only for peak sequential transfers. Low-latency TLC and firmware optimization show up in everyday storage traces, game-related workloads and mixed access patterns where a 14.9 GB/s specification by itself tells only part of the story.

Performance: very fast, but not magically fast at everything

Synthetic tests can push the SN8100 close to its rated sequential numbers, but the more useful result is how well it handles ordinary PC activity. In 3DNews testing, the SN8100 showed particularly strong results in PCMark 10 storage workloads, leading the Samsung 9100 Pro 2TB by roughly 15% in the overall result. Gaming-oriented storage traces were another strength, with the drive performing especially well in game launching, installation, copying, saving and gameplay capture scenarios.

That does not make it the universal winner. In the same test set, heavier SPECworkstation 4.0 traces put the SN8100 behind the Samsung 9100 Pro overall. The difference is important for buyers who move from a fast gaming PC to sustained professional storage work: the SN8100 is excellent at common client workloads, but a benchmark lead in gaming does not automatically translate into the fastest result in every engineering, scientific or content-production task.

Long writes expose another useful reality check. The 2TB model uses dynamic caching and can move through several performance phases. 3DNews sustained-write testing showed roughly 4.9 GB/s, 3.3 GB/s and 1.9 GB/s depending on cache state and how full the drive was. Those are still strong numbers, but they are a reminder that the 14,000 MB/s write rating is a peak condition, not the speed you should expect while filling the entire SSD in one pass.

Thermals: efficient does not mean cool

The SN8100 is substantially more sensible than early Gen5 drives, but a high-end M.2 heatsink is still a good idea. In 3DNews thermal stress testing without additional cooling, throttling appeared after roughly 130 seconds and the controller sensor reached around 107 C. The flash packages also became very hot.

That is a torture-style workload rather than normal game loading, so it should not be read as a claim that the drive constantly overheats. It does, however, settle the practical question: if your motherboard provides a proper M.2 heatsink for its PCIe 5.0 slot, use it. Buyers doing long video exports, large project transfers, scratch-disk work or repeated installs will benefit more from cooling than someone whose storage activity is mostly short bursts.

The good news is that the SN8100 no longer needs the oversized, fan-assisted coolers associated with some first-generation PCIe 5.0 SSDs. A competent motherboard heatsink is the right match for most desktop builds.

WD Black SN8100 vs WD Black SN850X: should you upgrade?

The SN850X remains the more useful comparison than an older budget NVMe drive because it is already a very fast, well-established PCIe 4.0 SSD. The SN8100 roughly doubles its sequential bandwidth on the 2TB models and also raises random performance sharply, but both drives carry the same 1,200 TBW endurance rating and five-year limited warranty at 2TB.

If you already own an SN850X, the SN8100 is not an automatic upgrade. Game loading and Windows responsiveness do not scale in a straight line with sequential bandwidth, so a jump from 7.3 GB/s to 14.9 GB/s will not make every task feel twice as fast. The case for upgrading becomes stronger if you are building around a motherboard with a true PCIe 5.0 x4 M.2 slot, regularly move very large files, use the drive for demanding creation workloads, or simply want a flagship storage platform for a new high-end system.

The SN850X still makes sense when price matters more than benchmark leadership, when the motherboard only offers PCIe 4.0 storage, or when the target machine is a PlayStation 5. In those cases, paying for Gen5 headroom that the host cannot use offers little practical value.

Rated specifications shown for the 2TB versions. The SN850X comparison is included as a buying reference, not as a claim that every workload scales by the same percentage.

Which capacity makes the most sense?

For this family, 2TB is the easiest recommendation for a performance-focused PC. It reaches the full 14,900/14,000 MB/s sequential specification, the full 2.3M/2.4M IOPS random specification and doubles endurance to 1,200 TBW compared with the 1TB model. The 4TB version keeps the same peak performance and raises endurance to 2,400 TBW if the budget allows.

The 8TB version is more specialized. It is still rated for 14,900 MB/s reads, but sequential writes dip to 13,200 MB/s and random reads to 2.2M IOPS. The trade-off is obvious: enormous local capacity and a 4,800 TBW endurance rating. For a gaming library, local AI models or large media projects, that can matter more than a small reduction in peak write speed.

Who should buy the WD Black SN8100?

The SN8100 is at its best in a new high-end desktop where the platform can actually feed a PCIe 5.0 x4 M.2 drive. It is a strong match for users who combine gaming with large project files, frequent installs, high-resolution media work or other storage-heavy tasks. It also makes sense for builders who keep a system for several years and want the storage subsystem to remain comfortably ahead of mainstream software demands.

It is harder to justify as a drop-in replacement for a good 2TB PCIe 4.0 SSD. If your current drive is already an SN850X-class product and you mostly launch games, browse, work in office apps and occasionally copy files, the practical difference can be much smaller than the specification sheet suggests. In that situation, capacity or price may matter more than interface generation.

Cooling should be treated as part of the build, not an afterthought. A motherboard M.2 heatsink is enough for most desktop users, but running this class of SSD bare under sustained load wastes some of the performance you paid for.

Verdict

The WD Black SN8100 is one of the clearest signs that PCIe 5.0 SSDs have moved beyond their awkward first generation. The 2TB model combines near-interface-limit sequential speed with excellent gaming-oriented performance, TLC NAND, DRAM, strong endurance and power behavior that is far more manageable than the earliest Gen5 flagships.

Its weaknesses are equally straightforward. Peak write figures are not sustained across the whole drive, workstation leadership is not guaranteed, and heavy continuous workloads can still push the drive into thermal throttling without a heatsink. Those are not deal-breakers, but they prevent the SN8100 from becoming a universal recommendation for every PC.

For a fresh high-end gaming or creator build with a proper Gen5 M.2 slot, the SN8100 is a strong option. For an existing SN850X owner, the smarter question is not whether the new drive is faster - it clearly is - but whether your workload can actually use the extra bandwidth.

Product-Specific FAQ

Is WD Black SN8100 the same as SANDISK Optimus GX PRO 8100?

SanDisk has moved the former WD_BLACK SN8100 performance tier into the SANDISK Optimus GX PRO 8100 family. Current retail and support pages may therefore use the newer Optimus branding. Check the exact SKU when comparing old and new listings.

What hardware is needed to reach 14,900 MB/s with the SN8100?

You need a PCIe 5.0 x4 NVMe M.2 slot connected at full Gen5 bandwidth. A Gen5 drive can work in slower compatible slots, but a PCIe 4.0 connection will cap transfer speed well below the SN8100's rated maximum.

Is the WD Black SN8100 2TB faster than the 1TB model?

Yes. Both are rated for up to 14,900 MB/s reads, but the 2TB model raises sequential writes from 11,000 to 14,000 MB/s and random reads from 1.6M to 2.3M IOPS. It also doubles endurance from 600 to 1,200 TBW.

Is upgrading from a WD Black SN850X 2TB worth it for gaming?

Only if the rest of the system can use PCIe 5.0 and you want flagship storage performance. The SN8100 is much faster on paper, but game loading does not scale linearly with sequential bandwidth. An SN850X remains a fast gaming SSD.

Can the WD Black SN8100 be used without a heatsink?

It can operate without one, but sustained heavy workloads can push it into thermal throttling. For a desktop PC, using the motherboard's M.2 heatsink is the sensible choice if the slot provides one.

Is the WD Black SN8100 a good workstation SSD?

It is very fast and well suited to many creator and workstation tasks, but it is not guaranteed to lead every professional workload. Published workstation testing has shown the Samsung 9100 Pro ahead overall in some heavier traces.

Does the SN8100 2TB have better endurance than the SN850X 2TB?

No. Both 2TB models are rated for 1,200 TBW and carry a five-year limited warranty. The SN8100's main advantage is performance and PCIe 5.0 bandwidth, not a higher write-endurance rating.

Is old WD Black SN8100 stock still worth buying in 2026?

It can be, especially if the price is attractive and the warranty terms are clear. SanDisk has changed the branding of this performance tier, so buyers should compare the exact model number, seller warranty and heatsink configuration rather than judging only by the logo on the box.
